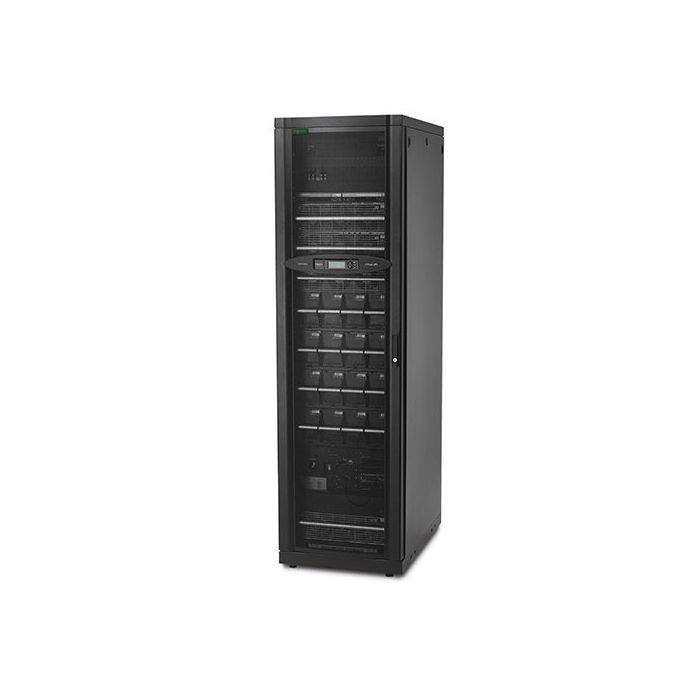

APC Symmetra PX InfraStruXure 20kW 208V ISX20K20F

APC Symmetra PX InfraStruXure 20kW 208V
Model: ISX20K20F
20 kW / 20 kVA
Refurbished with New Batteries
1 Year Replacement Warranty

Msrp Price: CAD $24,200.00

CAD $14,299.99

Availability: In stock

Description

Details

Manufacturer: APC
Model: APC Symmetra PX InfraStruXure 20kW 208V
Condition: Refurbished with New Batteries
Part Number: ISX20K20F
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The ISX20K20F is fully tested, refurbished, and comes with new batteries. The ISX20K20F is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

ISX20K20F Specifications

Main:

Main Input Voltage

208V 3 phase

Main Output Voltage

120V
208V
208V 3 phase

Kw Rating

20000W

Rated Power in VA

20000VA

Battery Type

Lead-Acid battery


Batteries & Runtime:

Included Battery Modules

2

Battery Slots Empty

2

Typical Recharge Time

2 h

RBC Quantity

1

Additional Information

Configurable for 208 or 240 nominal output voltage

Battery Charge Power (Watts)

2675 W rated

Battery Life

3…5 year(s)

Replacement Battery

SYBT4

Extendable Run Time

0


General:

Number of Power Module

3

Number Preinstalled Power Module

2

Number of Power Module Free Slots

0

Redundant

No


Physical:

Color

Black

Height

81.50 in (207 cm)

Width

24.02 in (61 cm)

Depth

35.51 in (90.2 cm)

Net Weight

1806.80 lb(US) (819.55 kg)

USB Compatible

No



Input:

Input Frequency

50/60 Hz +/- 3 Hz auto-sensing

Number of Input Connectors

1 Hard Wire 5-wire (3PH + N + G)

Efficiency at Full Load

177...240V

Input Power Factor at Full Load

0.99


Output:

Max Configurable Power (Watts)

20000W

Harmonic Distortion

Less than 5%

Output Frequency (sync to mains)

57...63 Hz for 60 Hz nominal sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal not synced

Topology

Double Conversion Online

Waveform Type

Sine wave

Bypass Type

Built-in Maintenance Bypass
Built-in Static Bypass

Maximum Configurable Power in VA

20000VA

Online Thermal Dissipation

5942.00 BTU/hr


Conformance:

Standards

CSA C22.2 No.107.3-05
FCC Part 15 class A
UL 1778


Environmental:

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Relative Humidity

0…95%

Operating Altitude

0...10000 ft

Ambient Air Temperature for Storage

5…104 °F (-15…40 °C)

Storage Relative Humidity

0…95%

Storage Altitude

0…50000 ft (0.00…15240.00 m)

Acoustic Level

58 dBA

Heat Dissipation

5942 Btu/h

NEMA Degree of Protection

NEMA 1


Communications & Management:

Free Slots

2

Pre-Installed SmartSlot™ Cards

Network management card 2 - Masterpack for Symmetra 3-Phase

Control Panel

Multi-function LCD status and control console

Emergency Power Off (EPO)

Yes
