Description
Details

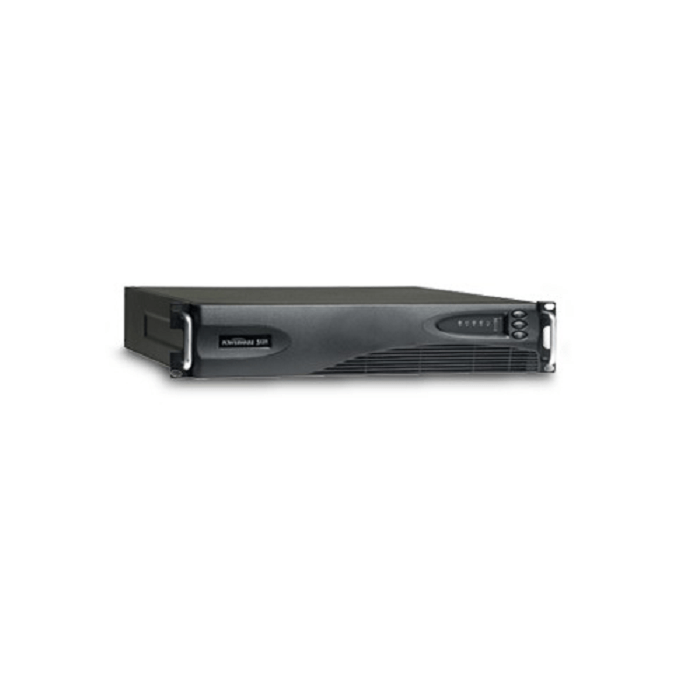

Manufacturer: Eaton Powerware 5125 Rackmount UPS 2400VA
Model: PW5125-2400 Refurbished
Condition: Refurbished with New Batteries
Part Number: PW5125-2400
Warranty: 1 Year Extended Warranty, additional warranty available
The PW5125-2400 is refurbished and comes with fresh new batteries. The PW5125-2400 comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
PW5125-2400 Specifications:
|
Electrical Input |
|
|
Nominal Voltage |
120 Vac (user-selectable for 100, 110, 120, and 127 Vac |
|
Power Ratings |
700 - 2000VA; See Model Selection Guide |
|
Voltage Range |
80 - 144V (without using batteries) |
|
Input Power Factor |
>.95, typical |
|
Frequency |
50/60 Hz, autosensing |
|
Frequency Range |
45 - 65 Hz |
|
Electrical Output |
|
|
On Utility Voltage Regulation |
+/-3% of nominal |
|
On Battery Voltage Regulation |
+/-3% of nominal |
|
Efficiency |
89 - 92%, depending on load |
|
Frequency Regulation |
+/- 3 Hz online; +/- 0.1 Hz on battery |
|
Load Crest Factor |
3 to 1 ratio |
|
Battery |
|
|
Internal Battery type |
Sealed, lead-acid; maintenance free |
|
EBM Battery Type |
PW9125 24 EBM: (8) 12V, 9 Ah |
|
On Battery Runtime |
See Battery Runtimes |
|
Battery Replacement |
Hot-swappable internal and external batteries |
|
Recharge Time |
<2 hrs. from complete discharge to 80% capacity at nominal line conditions |
|
Start-On-Battery |
Allows start of UPS without utility iinput |
|
Communications |
|
|
Serial Port |
RS-232 communications port standard |
|
Communications Cable |
6-foot communications cable included |
|
ConnectUPS-M SNMP Module (Optional)2 |
SNMP card adds direct control and monitoring capabilities in SNMP-based networks |
|
RS-232 Multi-Port Module (Optional)2 |
Equipped with (6) communications ports to provide serial communication to multiple devices |
|
USB Module (Optional)2 |
Allows UPS to communicate with Windows 98 computers via USB port; factory-installed option only |
|
General |
|
|
Topology |
True online, double-conversion |
|
Diagnostics |
Full system self-test on power up |
|
UPS Bypass |
Automatic on overload or UPS failure |
|
Weight |
34 lbs |
|
Environmental and Safety |
|
|
Safety Markings |
UL, CSA, and NOM |
|
EMC Markings |
FCC Class B and VCCI Class II |
|
Surge Suppression |
IEEE/ANSI C62.41 Category B (formerly 587) |
|
Audible Noise |
<45 dBA (on utility); <50 dBA (on battery) |
|
Storage Temperature |
0o to 25o C (32o to 77o F) |
|
Relative Humidity |
5 to 90%%, non-condensing |
|
REPO Port |
Meets NEC code 645-II intent and UL requirements |
|
Network Transient Protector |
In and out jack for telephone/modem protection of 10Base-T network cable; UL497A tested |
Additional Info
Additional Info
| Manufacturer | Eaton Powerware |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | No |
| Output (VA) | No |
| Output Voltage | No |
| PDU Total Outlets | No |
