Description
Details
Manufacturer: Liebert

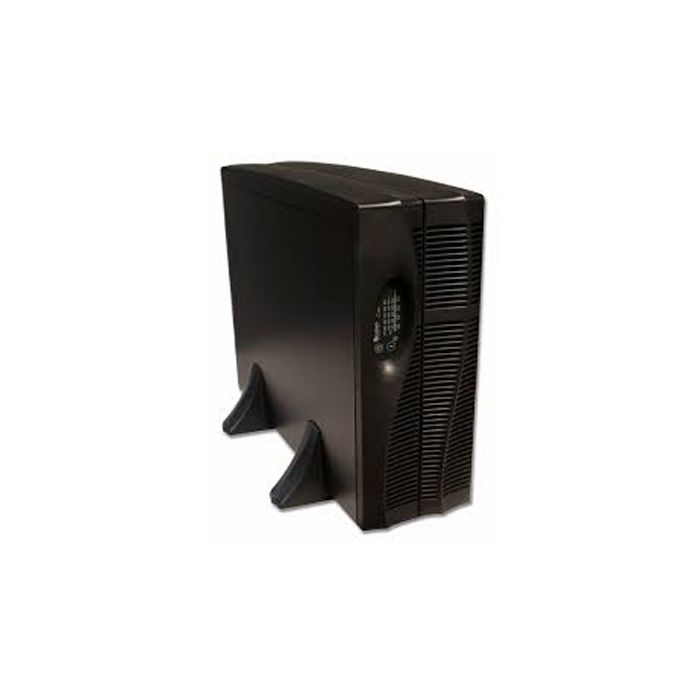

Model: GXT2-6000RT208 Liebert Online Double Conversion Rackmount 4U UPS - 120V / 208V - Split phase
Condition: Refurbished with New Batteries
Part Number: GXT2-6000RT208
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The GXT2-6000RT208 comes refurbished with new batteries. The Liebert UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
- True On Line (Double Conversion) Technology
- User replaceable batteries without removing GXT2 from rack
- Wide input voltage window allows UPS support without going to battery, extending systems availability
- Built in Surge Suppression
- SNMPE3 compatible
- External plug and play, 2U battery cabinets available
- Configurable as rack or tower Specifications
GXT2-6000RT208 Specifications:
Output
- Capacity 6000VA (4200 Watts)
- Nominal Voltage 120/208 VAC
- L1-L2 Factory default output phase angle: 120 Degrees
- Allowable output phase angle: 120, 180 or 240 Degrees, auto-sending on initial application of AC
- Factory default L1-N, L2-N VAC: 120 VAC
- User configurable L1-N, L2-N VAC: 100, 110, 115, 120, 127 VAC +/- 3%
- Output connections: Frequency 50/60 Hz
- (1) L6-30R
- (1) L6-30R
- (4) 5-20R (Standard 120V 3-prong receptacles will also accept 20Amp straight plug also known as “T” plug)
- Waveform Sinewave
Input
- Input Voltage 120/208 VAC at 120 degrees
- Frequency 50/60 Hz
- L1-L2 Input Phase Angle 120 Degrees
- Allowable Input Phase Angle 120, 180, 240 degrees. Auto sensing on application of AC.
- Factory default L1-N, L2-N VAC: 120 VAC Nominal
- User configurable L1-N, L2-N VAC: 100, 110, 115, 120, 127 VAC
- Input power connection: L14-30P
Batteries
- Type Valve-regulated non-spillable, flame-retardant, sealed lead-acid batteries
- Runtime at full load (4200 Watts) 5 minutes
- Runtime at 75% load (3150 Watts) 8 minutes
- Runtime at 50% load (2100 Watts) 14 minutes
- Runtime at 25% load (1050 Watts) 32 minutes
- Runtime at minimal load (420 Watts) 75 minutes
- Replacement battery kit URBC120912
- Recharge Time 6 hours to 90% capacity
- External Battery Cabinet for extended runtime capability GXT2-144VBATT
Physical
- Width 16.9 inches (430 mm)
- Depth 24.2 inches (615 mm)
- Height 6.9 inches (4U) (176 mm)
- Weight 146 lbs. (66.1 Kg)
- Audible Noise <50 dBA at 1 meter from front or sides
Copmpliance
- UL 1778
- c-UL Listed
- FCC Part 15 Subpart B Class A
- IEEE/ANSI C62.41 Category A & B
- ISTA Procedure 1A
Additional Info
Additional Info
Manufacturer | Liebert |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC, 208V AC |
Output (VA) | 6000VA |
Output Voltage | No |
PDU Total Outlets | No |
