Description
Details
Manufacturer: Liebert

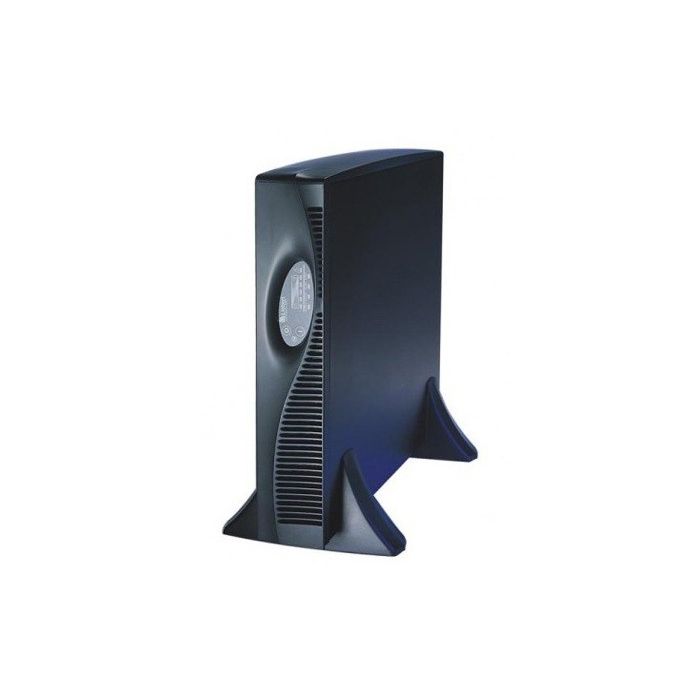

Model: GXT2-700RT120 Liebert Online Double Conversion 700VA UPS
Condition: Refurbished with New Batteries
Part Number: GXT2-700RT120
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The GXT2-700RT120 comes refurbished with new batteries. The Liebert UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
GXT2-700RT120 Specifications:
|
Power Rating |
|
|
Rating, VA |
700VA |
|
Rating, W |
490W |
|
Input AC Specifications |
|
|
Phase |
1 |
|
Power Factor |
0.97 |
|
Input Frequency, Hz |
50/60 |
|
Frequency Range, Hz |
40 - 70 Hz; Auto Sensing |
|
Input Voltage Range, VAC |
60 - 140 |
|
Input Voltage |
100/110/115/120/127 |
|
Input Connections or Input Cord/Plug Type |
(6 ft) NEMA 5-15P |
|
General Specifications |
|
|
UPS Technology |
On-Line |
|
Battery Specifications |
|
|
Battery Test Type |
Manual & Automatic |
|
Runtime, Full Load, Watt |
17 min. |
|
Runtime, Half Load, Watt |
44 min. |
|
Recharge Time |
5 Hrs to 95% |
|
User Replaceable Battery |
Yes |
|
Battery Technology |
VRLA |
|
Output Waveform on Battery |
Sinewave |
|
Output AC Specifications |
|
|
Nominal Voltage |
100/110/115/120/127V +/- 3% |
|
Output Waveform |
Sinewave |
|
Receptacles (b=Battery, s=Surge) |
(6) NEMA 5-15R |
|
User Interface |
|
|
Audible Alarms |
Yes |
|
Display Type |
LED |
|
Communications |
|
|
Communications Options |
SNMP/RS232 |
|
Software and Cable |
N/A |
|
Software and Cable |
Multilink SW & Serial Cable |
|
Physical Data |
|
|
Color |
Black |
|
Form Factor |
Racktower |
|
Unit Height, inches (mm) |
17.0 (430) |
|
Unit Width, inches (mm) |
3.5 (87) |
|
Unit Depth, inches (mm) |
21.5 (547) |
|
Unit Weight, lbs. (kg) |
48.9 (22.2) |
|
Shipping Height, inches (mm) |
23.0 (584) |
|
Shipping Width, inches (mm) |
10.6 (269) |
|
Shipping Depth, inches (mm) |
27.2 (691) |
|
Shipping Weight, lbs. (kg) |
57.7 (26.2) |
|
Environmental |
|
|
Operating Temperature, Minimum °F (°C) |
32 (0) |
|
Operating Temperature, Maximum °F (°C) |
104 (40) |
|
Storage Temperature, Minimum °F (°C) |
5 (-15 ) |
|
Storage Temperature, Maximum °F (°C) |
104 (40) |
|
Relative Humidity |
0% to 95%, Non Condensing |
|
Operating Elevation, ft. (m) |
Up to 10,000 (3000) |
|
Sound Emission/Audible Noise |
< 50dBA, at 1 meter |
|
Cooling |
Fan Cooled |
|
Options |
|
|
Optional Items |
External Battery Cabinets |
|
Agency/Certification/Conformance |
|
|
Agency Approval |
cUL Listed, FCC Part 15, Subpart B, Class A, UL 1778, UL Listed |
Additional Info
Additional Info
| Manufacturer | Liebert |
|---|---|
| Form Factor | Tower |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | No |
| Output (VA) | 700VA |
| Output Voltage | No |
| PDU Total Outlets | No |
