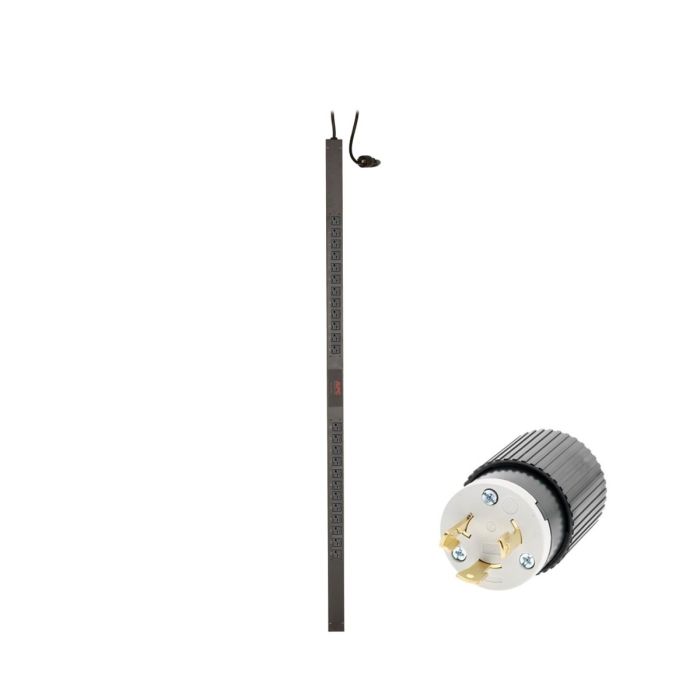

APC AP7530 Basic Rack PDU 1920VA, 0U, 100-120V 20A, L5-20P Output: (24)5-20R - Refurb
APC AP7530 Basic Rack PDU, Zero U, 100V/120V 20A L5-20P, (24)5-20R
Model:Â AP7530
Input:Â NEMA L5-20P
Output:Â (24) NEMA 5-20R
Refurbished PDU
1 Year Warranty Included
CAD $172.49
Back Order
Manufacturer:Â APC
Model:Â AP7530
Description: Basic Rack PDU, Zero U, 20A, 100-120V, (24)5-20RÂ
Input:Â NEMA L5-20P - 100V, 120V - 20A
Output: (24) NEMA 5-20R
Condition:Â Refurbished PDU
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
APC AP7530Â Specifications:Â
Â
Input
|
Nominal Input Voltage |
100V, 120V |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
NEMA L5-20P |
|
Cord Length |
10 ft. (3.05 meters) |
|
Acceptable Input Voltage |
100-120VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
1920VA |
|
Maximum Input Current |
20A |
|
Regulatory Derated Input Current (North America) |
16A |
Output
|
Nominal Output Voltage |
120V |
|
Overload Protection |
No |
|
Maximum Total Current Draw |
16 |
|
Output Connections |
(24) NEMA 5-20R |
Environmental
|
Operating Temperature |
23 - 113 °F (-5 - 45 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 4500 meters |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 15000 meters |
Physical
|
Height |
63.75 inches (1619mm, 161.9cm) |
|
Width |
2.19 inches (56mm, 5.6cm) |
|
Depth |
1.73 inches (44mm, 4.4cm) |
|
Weight |
10.7lbs. (4.86kg) |
|
Shipping Weight |
12.7lbs. (5.77kg) |
|
Shipping Height |
84.0 inches (2134mm, 213.4cm) |
|
Shipping Width |
6.0 inches (152mm, 15.2cm) |
|
Shipping Depth |
5.0 inches (127mm, 12.7cm) |
|
Color |
Black |
