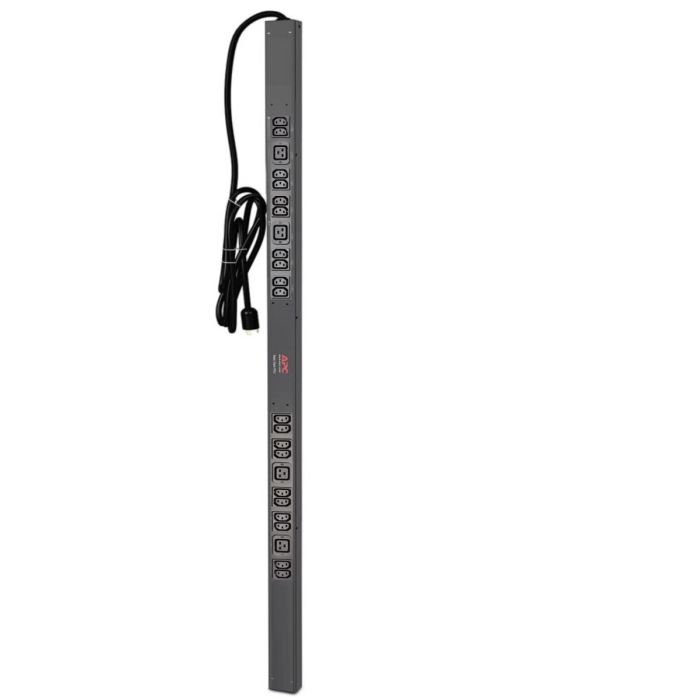

APC AP7540 Basic Rack PDU, 0U, 208-230V, 20A, Output: (20)C13 & (4)C19 - Refurbished
APC AP7540 Rack PDU, Basic,Zero U, 20A, 208V
Model: AP7540
Input: 200V, 208V, 230V
Input Connections: NEMA L6-20P
Output:Â 208V
Output Connections: (20) IEC 60320 C13, (4) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty
CAD $269.99
In stock
Manufacturer: APC
Model Description:Â APC Basic Rack PDU, ZERO U, 20A 208V-230V, (20)C13 & (4)C19
Condition: Refurbished
Part Number: AP7540
Output Voltage:Â 208V
Input Voltage:Â 200V, 208V, 230V
Warranty:Â 1 Year Full Replacement Warranty
Description: APC AP7540 Basic Rack PDU, ZeroU, 20A, 208–230V, (20) C13 & (4) C19. Model: AP7540. Input Connection: NEMA L6-20P (20A, 200/208/230V). Output Connections: (20) IEC C13, (4) IEC C19. Provides up to 3300VA load capacity for reliable power distribution in data center and network rack environments. Compact 0U vertical design installs without using rack space, making it ideal for high-density deployments. Supports multiple IEC outlet types for servers, switches, and other IT equipment. Refurbished unit. 1 Year Full Replacement Warranty Included.
Â
APC AP7540 Basic Rack PDU, ZeroU, 20A, 208–230V
AP7540 - APC Basic Rack PDU Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
208V |
||||
|
Nominal Input Voltage |
200V, 208V, 230V |
||||
|
Input Connections |
NEMA L6-20P |
Output:
|
Overload Protection |
No |
|
Maximum Total Current Draw |
16 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
3300VA |
|
Maximum Input Current |
20A |
|
Maximum Line Current |
30A |
|
Regulatory Derated Input Current (North America) |
16A |
Physical:
|
Maximum Height |
63.74 inches (1619mm, 161.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
1.73 inches (44mm, 4.4cm) |
|
Net Weight |
10.71 lbs. (4.86kg) |
|
Shipping Weight |
12.72 lbs. (5.77kg) |
|
Shipping Height |
84.02 inches (2134mm, 213.4cm) |
|
Shipping Width |
5.98 inches (152mm, 15.2cm) |
|
Shipping Depth |
5.0 inches (127mm, 12.7cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 113 °F (0 - 45 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
