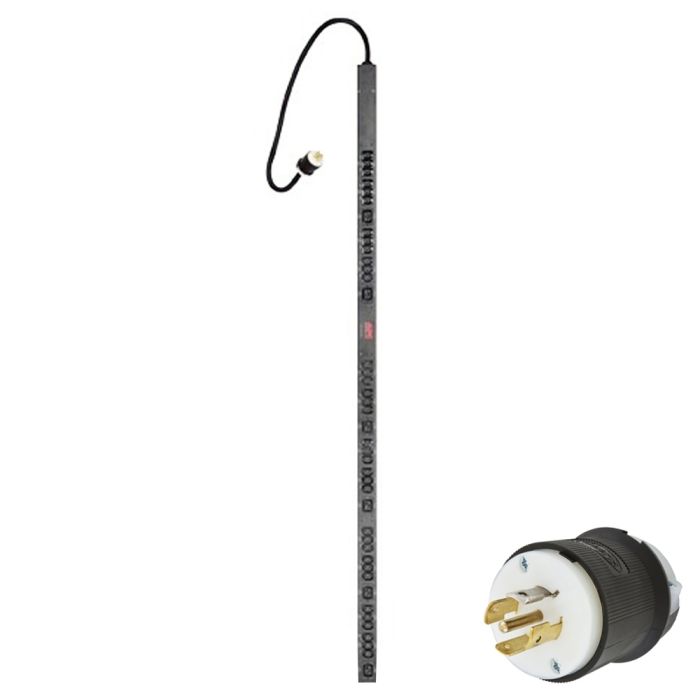

APC AP7564 Basic Rack PDU, Zero U, 208V 3PH 20A L21-20P, (6)C19 & (36)C13 - Refurbished
APC AP7564 Basic Rack PDU, Zero U, 208V 3PH 20A L21-20P, (6)C19 & (36)C13
Model: AP7564
Input: NEMA L21-20P
Output: (6) C19 (36) C13
Refurbished PDU
1 Year Warranty Included
CAD $229.99
In stock
Manufacturer: APC
Model: AP7564
Description: Basic Rack PDU, Zero U, 20A, 208V 3PH, (6)C19 & (36)C13 - Refurbished
Input: NEMA L21-20P - 208V 3PH - 20A
Output: (6) IEC 320 C19 (36) IEC 320 C13
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC AP7564 Specifications:
Input
|
Nominal Input Voltage |
208V 3PH |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
NEMA L21-20P |
|
Cord Length |
3 ft (0.91 meters) |
|
Number of Power Cords |
1 |
|
Load Capacity |
5700VA |
|
Maximum Input Current |
20A |
|
Regulatory Derated Input Current (North America) |
16A |
Output
|
Nominal Output Voltage |
208V |
|
Overload Protection |
No |
|
Maximum Total Current Draw |
20 |
|
Output Connections |
(6) IEC 320 C19 |
Environmental
|
Operating Temperature |
32 - 113 °F (0 - 45 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 3000 meters |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 15000 meters |
Physical
|
Height |
70.0 inches (1778mm, 177.8cm) |
|
Width |
2.2 inches (56mm, 5.6cm) |
|
Depth |
1.73 inches (44mm, 4.4cm) |
|
Weight |
12.0lbs. (5.45kg) |
|
Shipping Weight |
14.0lbs. (6.36kg) |
|
Shipping Height |
84.0 inches (2134mm, 213.4cm) |
|
Shipping Width |
6.0 inches (152mm, 15.2cm) |
|
Shipping Depth |
5.0 inches (127mm, 12.7cm) |
|
Color |
Black |
