Description
Details
Manufacturer: APC

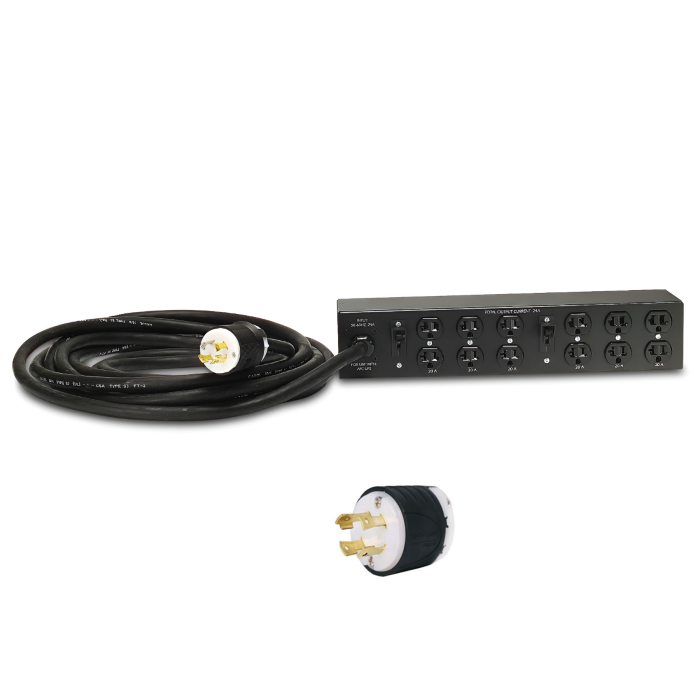

Model: AP7582
Description: Basic Rack PDU Extender, 2U, 30A, 200-208V, (12)5-20R - Refurbished
Input: NEMA L14-30P - 200V, 208V - 30A
Output: (12) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC AP7540 Specifications:
Input
|
Nominal Input Voltage |
200V, 208V |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
NEMA L14-30P |
|
Cord Length |
28 ft (8.53 meters) |
|
Number of Power Cords |
1 |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Output
|
Nominal Output Voltage |
120V |
|
Maximum Total Current Draw |
24 |
|
Output Connections |
(12) NEMA 5-20R |
Environmental
|
Operating Temperature |
32 - 113 °F (0 - 45 °C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 3000 meters |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 15000 meters |
Physical
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
17.2 inches (437mm, 43.7cm) |
|
Depth |
3.5 inches (89mm, 8.9cm) |
|
Rack Height |
2U |
|
Weight |
14.0 lbs. (6.36kg) |
|
Shipping Weight |
16.0 lbs. (7.27kg) |
|
Shipping Height |
6.0 inches (152mm, 15.2cm) |
|
Shipping Width |
20.5 inches (521mm, 52.1cm) |
|
Shipping Depth |
20.5 inches (521mm, 52.1cm) |
|
Color |
Black |
Additional Info
Additional Info
| Manufacturer | No |
|---|---|
| Form Factor | No |
| Waveform in Battery Mode | No |
| Input Voltage | No |
| Output (VA) | No |
| Output Voltage | No |
| PDU Total Outlets | 12 |
