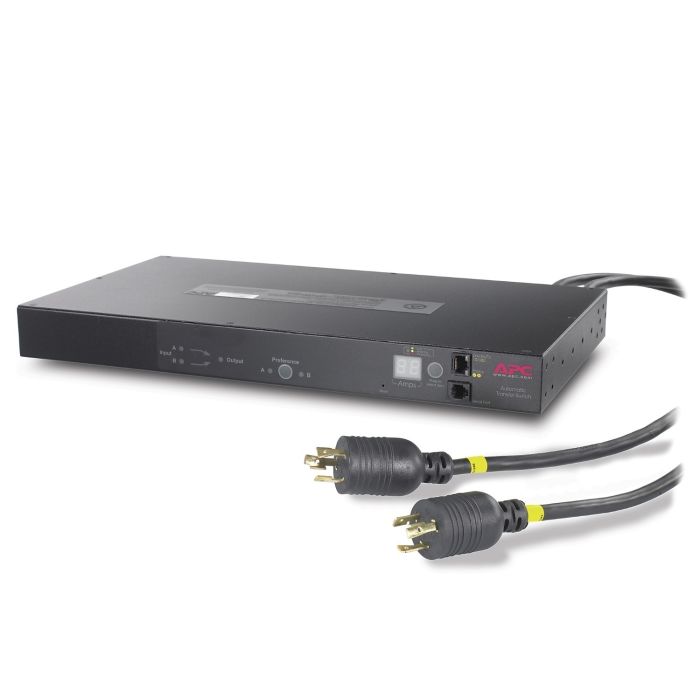

APC AP7752 Rack ATS, PDU, 1U, 120V, 20A, L5-20 IN, (10) 5-20R Out
Model: AP7752 / Automatic Transfer Switch
Input: NEMA L5-20P - 20A 120V
Output: (10) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
In stock
Manufacturer: APC
Model: AP7752
Description: APC AP7752 Automatic Transfer Switch, RM 1U, 20A, 120V
Input: NEMA L5-20P - 20A 120V
Output: (10) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC AP7752 Rack ATS 1U 20A 120V User's Manual
AP7752 - Specifications:
Key Features:
Rack Height |
1U |
||
Output Connections |
|
||
Nominal Output Voltage |
120V |
||
Nominal Input Voltage |
100V, 120V |
||
Input Connections |
|
||
Cord Length |
2.4 meters |
Output:
Overload Protection |
No |
Maximum Total Current Draw |
20 |
Input:
Input frequency |
47 - 63 Hz |
Number of Power Cords |
2 |
Maximum Input Current |
20A |
Maximum Line Current |
20A |
Regulatory Derated Input Current (North America) |
16A |
Physical:
Maximum Height |
1.73 inches (44MM, 4.4CM) |
Maximum Width |
17.01 inches (432MM, 43.2CM) |
Maximum Depth |
9.01 inches (229MM, 22.9CM) |
Net Weight |
10.97 lbs. (4.7KG) |
Shipping weight |
0.26 lbs. (6.75KG) |
Shipping Height |
4.48 inches (114MM, 11.4CM) |
Shipping Width |
23.62 inches (600MM, 60.0CM) |
Shipping Depth |
13.74 inches (349MM, 34.9CM) |
Environmental:
Operating Temperature |
-5 - 45 °C |
Operating Relative Humidity |
5 - 95% |
Operating Elevation |
0 - 3048 meters |
Storage Temperature |
-25 - 65 °C |
Storage Relative Humidity |
5 - 95% |
Storage Elevation |
0 - 15240 meters |
