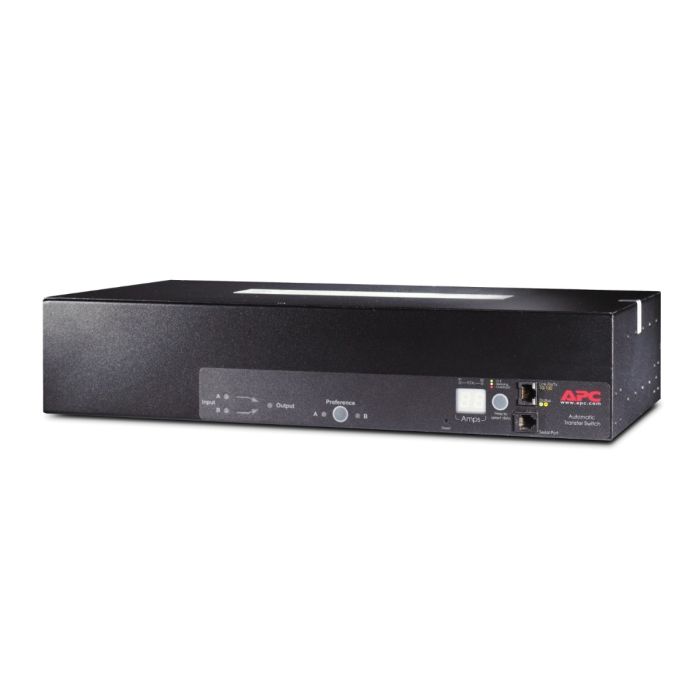

APC AP7753 Rack PDU, PDU, 2U, 120V, 30A, L5-20P In, (16) 5-20R Out
Model: AP7753 / Automatic Transfer Switch
Input: L5-30P - 30A 120V
Output: (16) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
In stock
Manufacturer: APC
Model: AP7753
Description: APC AP7753 Automatic Transfer Switch, RM 2U, 30A, 120V
Input: NEMA L5-30P - 30A 120V
Output: (16) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC AP7753 Rack PDU 2U 30A 120V User's Manual
AP7753 - Specifications:
Main:
Main Input Voltage |
100V |
||
Main Output Voltage |
120V |
||
Input Connection Type |
|
||
Number of Rack Unit |
2U |
||
Cable Length |
8ft (2.44m) |
||
Number of Cables |
2 |
Physical:
Color |
Black |
Height |
3.46 in (8.8cm) |
Width |
17.01 in (43.2cm) |
Depth |
9.29 in (23.6cm) |
Net Weight |
13.98 lb (US) (6.34 kg) |
Mounting Location |
Front |
Mounting Preference |
No preference |
Mounting Mode |
Rack-mounted |
Input:
Input Frequency |
50/60 Hz |
Line Rated Current |
24A |
Max Line Current |
30A |
Input Current Limits |
30A |
Output:
Maximum Total Current Draw per Phase |
30A |
||
Number of Power Socket Outlets |
|
||
Protection Type |
Circuit Breaker |
Environmental:
Ambient Air Temperature for Operation |
23 - 113°F (-5 - 45°C) |
Relative Humidity |
5 - 95% |
Operating Altitude |
0 - 10000ft |
Ambient Air Temperature for Storage |
-13 - 149°F (-25 - 65°C) |
Storage Relative Humidity |
5 - 95% |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
