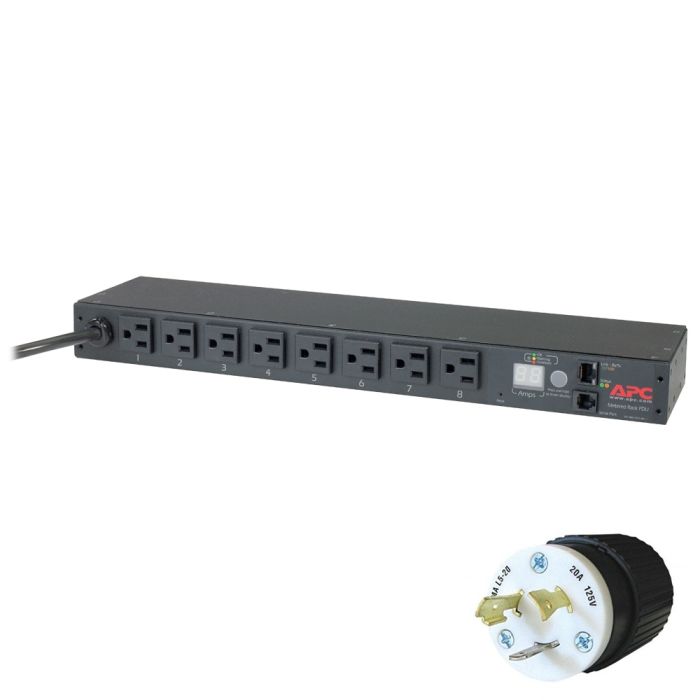

Main image Click to view image in fullscreen APC AP7801 Rack PDU, Metered, 1U, L5-20P, 20A, 120V Input, (8) NEMA 5-20R Output - Refurbished

APC AP7801 Rack PDU Metered 1U, L5-20P, 1920VA 20A 120V, Output:(8)5-20R - Refurbished

APC AP7801 Rack PDU, Metered, 1U, 20A, 120V (8) 5-20
Model: AP7801
Input: 100V, 120V
Input Connections: L5-20P - 20A 120V
Output Connections: (8) 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + CAD $39.10

3 Year + CAD $68.42

Back Order

Quantity

Manufacturer: APC
Model: APC AP7801 Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20
Condition: Refurbished PDU
Part Number: AP7801
Warranty: 1 Year Full Replacement Warranty, additional warranty available

AP7801 Specifications:

Output:

Nominal Output Voltage

120V

Maximum Total Current Draw per Phase

16A

Output Connections

(8) NEMA 5-20R

Overload Protection

Input:

Nominal Input Voltage

100V, 120V

Input Frequency

50/60 Hz

Regulatory Derated Input Current (North America)

16A

Input Connections

NEMA L5-20P

Cord Length

3.66 meters

Number of Power Cords

Maximum Input Current per phase

20A

Load Capacity

1920 VA

Physical:

Net Weight	1.73 KG
Maximum Height	44.00 mm
Maximum Width	444.00 mm
Maximum Depth	102.00 mm
Shipping Weight	2.91 KG
Shipping Height	64.00 mm
Shipping Width	470.00 mm
Shipping Depth	337.00 mm

Environmental:

Operating Environment	-5 - 45 °C
Operating Relative Humidity	5 - 95%
Operating Elevation	0-3000 meters
Storage Temperature	-25 - 65 °C
Storage Relative Humidity	5 - 95%
Storage Elevation	0-15000 meters
