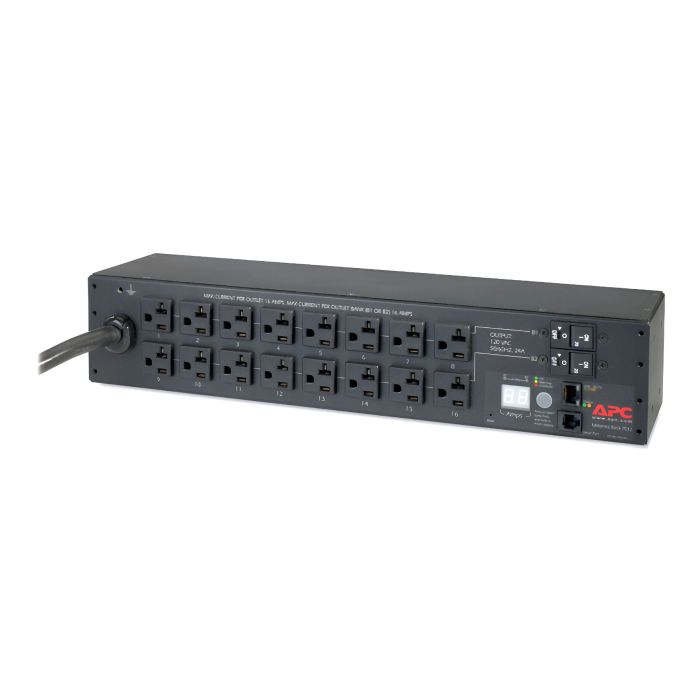

Main image Click to view image in fullscreen APC AP7802 Rack PDU Metered 2880VA 120V 30A, Input:L5-30P, Output:(16)5-20R - Refurbished

APC AP7802 Rack PDU Metered 2880VA 120V 30A Input:L5-30P, Output:(16)5-20R - Refurb

APC AP7802 Rack PDU 2G, Metered, 2U, 30A, 120V
Model: AP7802
Input: L5-30P (120V - 30A)
Output: (16) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + CAD $57.50

3 Year + CAD $100.62

Back Order

Quantity

Manufacturer: APC
Model: AP7802
Description: APC Metered Rack PDU, 2U, 30A, L5-30P Input, Output: (16) NEMA 5-20R
Input: NEMA L5-30P - (120V - 30A)
Output: (16) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

APC AP7802 Specifications:

Main

Main Input Voltage

100V
120V

PDU Type

Metered

Main Output Voltage

120V

Input Connections

NEMA L5-30P

Number of Rack Unit

Cable Length

12 ft (3.66 m)

Number of Cables

Physical

Color	Black
Height	3.46 in (8.8 cm)
Width	17.48 in (44.4 cm)
Depth	4.41 in (11.2 cm)
Product Weight	7.41 lb(US) (3.36 kg)
Mounting Location	Front Rear
Mounting preference	No preference
Mounting Mode	Rack-mounted
Mounting Position	Horizontal

Input

Line Rated Current	24A
Input current limits	30A
Load Capacity	2880VA
Input Frequency	50/60 Hz

Output

Output Connections

NEMA 5-20R

Conformance

Product Certifications	CUL Listed CSA UL Listed
Standards	FCC Part 15 class A ICES-003 UL 60950

Environmental

Ambient Air Temperature for Operation	23 - 113°F (-5 - 45°C)
Relative Humidity	5 - 95%
Operating Altitude	0 - 10000 ft
Ambient Air Temperature for Storage	-13 - 149°F (-25 - 65°C)
Storage Relative Humidity	5 - 95%
Storage Altitude	0 - 50000 ft (0.00 - 15240.00 m)
