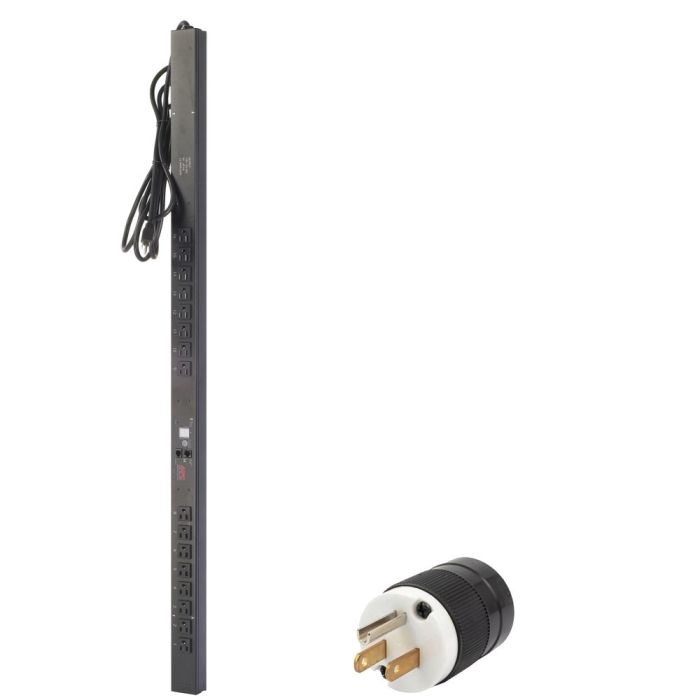

APC AP7831 Rack PDU, Metered, 0U, 15A, 120V, Input 5-15P, Output: (16)5-15R - Refurbished

Manufacturer: APC
Model Description: APC Metered Rack PDU, Zero U, 15A, 100/120V, (16) NEMA 5-15R
Condition: Refurbished PDU

Part Number: AP7831

Input: NEMA 5-15P – 15A 100/120V
Output: (16) NEMA 5-15R
Output Voltage: 120V
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP7831 is a ZeroU metered rack Power Distribution Unit designed for efficient power monitoring in IT environments. It delivers reliable 120V power distribution through 16 NEMA 5-15R outlets and supports real-time load monitoring to help prevent circuit overloads. Ideal for server rooms and network racks, it provides local display metering for current draw and supports vertical rack mounting to save valuable rack space. No remote switching control (metered-only design).

APC Metered Rack PDU, 0U, 15A 120V - User Manual

AP7831 Specifications:

Key Features:

Output Connections	(16) NEMA 5-15R
Nominal Input Voltage	100–120V
Output Voltage	120V
Input Connection	NEMA 5-15P
Input Frequency	50/60 Hz
Maximum Line Current	15A
Load Capacity	1440 VA (~1150 W approx.)
Max Current Draw	15A
Circuit Protection	No built-in circuit breaker

Input:

Physical:

Communications & Monitoring:

Environmental:
