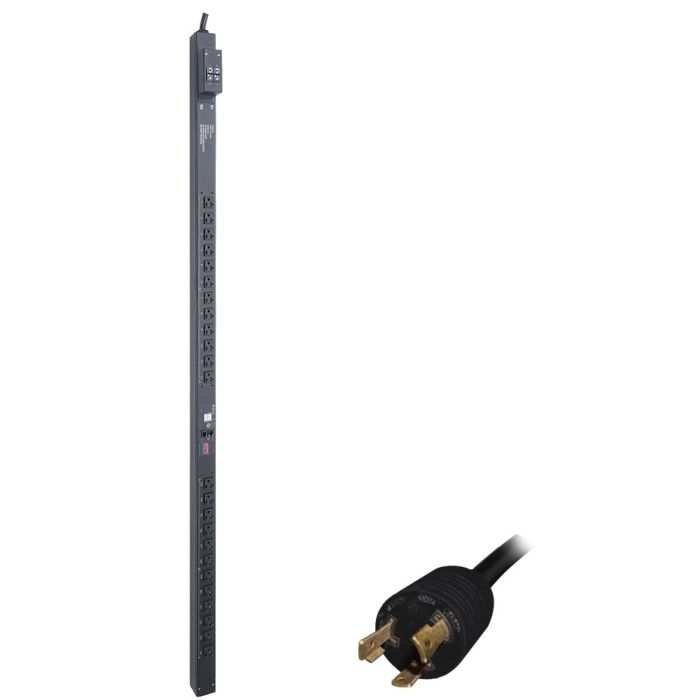

Main image Click to view image in fullscreen APC AP7832 Metered Rack PDU, Zero U, 120V 30A L5-30P, (24) 5-20R - Refurbished

APC AP7832 Metered Rack PDU 0U, 30A 120V Input: L5-30P, Output (24)5-20R - Refurbished

APC AP7832 Rack PDU, Metered, Zero U, 30A, 120V
Model: AP7832
Input: 120V
Input Connections: L5-30P 30A, 120V
Output: 120V
Output Connections: (24) 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + CAD $57.50

3 Year + CAD $100.62

In stock

Quantity

Manufacturer: APC
Model Description: APC Metered Rack PDU, Zero U, 30A 120V, (24) 5-20R
Condition: Refurbished
Part Number: AP7832
Output Voltage: 120V
Input Voltage: 120V 30A
Warranty: 1 Year Full Replacement Warranty

Description: APC AP7832 Metered Rack PDU, ZeroU, 30A, 120V, (24) NEMA 5-20R. Model: AP7832. Input Connection: NEMA L5-30P (30A, 120V). Output Connections: (24) NEMA 5-20R. Provides up to 2880VA capacity with input-level power metering for real-time load monitoring in amps. Includes built-in network management interface (Ethernet) with support for Web (HTTP/HTTPS), SNMP v1/v2c/v3, Telnet, and SSH, plus configurable alarms, email/SNMP/syslog notifications, and full event logging. 0U vertical rack design for high-density installations without occupying rack space. Refurbished unit. 1 Year Full Replacement Warranty Included.

APC AP7832 Metered Rack PDU, Zero U, 30A - User Manual

AP7832 Specifications:

Key Features:

Output Connections

(24) NEMA 5-20R

Nominal Output Voltage

120V

Nominal Input Voltage

100V, 120V

Input Connections

NEMA L5-30P

Output:

Nominal Output Voltage	120V AC
Output Connections	(24) NEMA 5-20R
Overload Protection	Yes
Maximum Total Current Draw	24A

Input:

Nominal Input Voltage	100–120V AC
Input Frequency	50/60 Hz
Input Connection	NEMA L5-30P
Maximum Input Current	30A
Derated Current (NA)	24A
Number of Power Cords	1
Load Capacity	2880 VA
Phase	Single-Phase

Physical:

Maximum Height	1619mm, 161.9cm
Maximum Width	56mm, 5.6cm
Maximum Depth	44mm, 4.4cm
Net Weight	5.68kg
Shipping Weight	6.59kg
Color	Black

Environmental:

Operating Temperature	0 - 45 °C
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3048meters
Storage Temperature	-25 - 65°C
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 50000ft (0 - 15240 meters)

Communications & Management:

Network Interface	Built-in Ethernet (10/100Base-T)
Management Platform	APC Network Management Card (integrated)
Remote Management	Web (HTTP/HTTPS), SNMP v1/v2c/v3, Telnet, SSH
User Interface	Web UI + CLI (command line interface)
Monitoring	Real-time current monitoring (Amps – total load)
Metering Type	Input-level metering only
Alarms	Configurable load thresholds (overload warning)
Notifications	Email alerts, SNMP traps, Syslog
Logging	Event log and power usage log
Security	HTTPS, SSH, SNMPv3, user authentication
User Roles	Administrator / Read-only access
Firmware Upgrade	Supported via web, FTP, SCP
Time Sync	NTP support
IP Configuration	DHCP, BOOTP, Static
Serial Access	RJ-45 serial port
Integration	APC PowerNet MIB, EcoStruxure compatible
