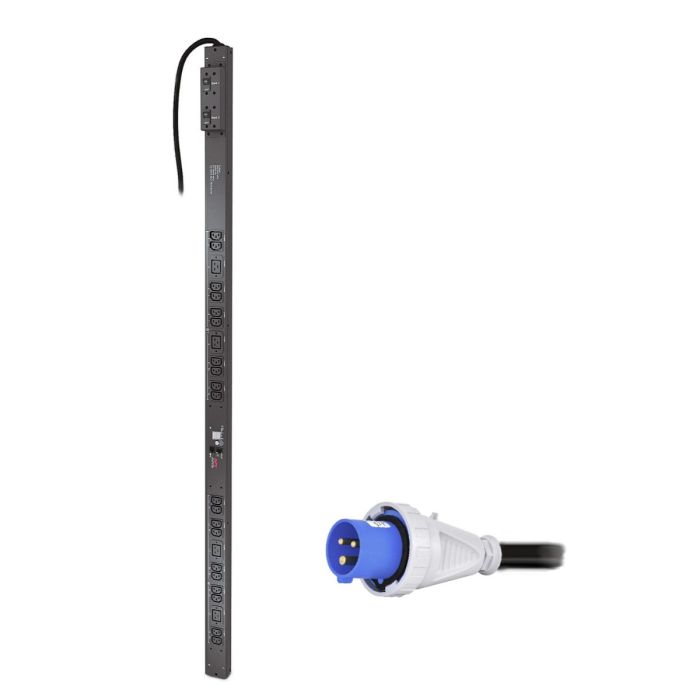

APC AP7841 Rack PDU Metered 4992VA 30A 200-240V, Zero U, IN: IEC 60309 2P+E - Refurbished
APC AP7841 Rack PDU, Metered, Zero U, 30A, 200/240V
Model: AP7841
Input: 200V-230V
Input Connection: IEC 60309 2P+E
Output: 200V-240V
Output Connections: (20) C13, (4) C19
Refurbished PDU
1 Year Replacement Warranty
CAD $289.99
In stock
Manufacturer: APC
Model Description: APC Metered Rack PDU, Zero U, 30A 200V-230V, (20) C13 & (4) C19
Condition: Refurbished
Part Number: AP7841
Output Voltage: 200V, 208V, 230V, 240V
Input Voltage: 200V, 208V, 230V 30A
Warranty: 1 Year Full Replacement Warranty
Description: APC AP7841 Metered Rack PDU, ZeroU, 30A, 200–240V, (20) C13 & (4) C19. Model: AP7841. Input Connection: IEC 60309 2P+E . Output Connections: (20) IEC C13, (4) IEC C19. Provides up to 4992VA capacity with input-level metering for real-time load monitoring in amps. Supports remote management via built-in Ethernet (SNMP, Web, Telnet, SSH) with configurable alarms, event logging, and email/SNMP notifications. Vertical 0U design for high-density rack integration without consuming rack space. Refurbished unit. 1 Year Full Replacement Warranty Included.
APC AP7841 Rack PDU Metered, 0u, 4992VA, 30A, 200-240V - Product data sheet
AP7841- APC Metered Rack PDU Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
200V, 208V, 230V, 240V |
||||
|
Nominal Input Voltage |
200V, 208V, 230V |
||||
|
Input Connections |
IEC 60309 2P+E |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
30 |
Input:
|
Input frequency |
50/60 Hz |
|
Acceptable Input Voltage |
200 - 240VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
63.74 inches (1619mm, 161.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
1.73 inches (44mm, 4.4cm) |
|
Net Weight |
12.52 lbs. (5.68kg) |
|
Color |
Black |
Communications & Management :
| Network Interface | Built-in Ethernet port (10/100Base-T) |
| Remote Management | Web (HTTP/HTTPS), SNMP (v1/v2c/v3), Telnet, SSH |
| User Interface | Integrated web interface + local LED display for current (amps) |
| Monitoring | Real-time current monitoring (total load in amps) |
| Metering Type | Input-level metering (aggregate load monitoring) |
| Alarms | User-configurable thresholds for load (overload warnings) |
| Notifications | SNMP traps, email alerts, syslog support |
| Logging | Event logging and power data logs via network interface |
| Security | HTTPS, SNMPv3, SSH, user authentication and role-based access |
| Network Management | Compatible with APC PowerNet MIB and management platforms |
| Firmware Upgrade |
Supported via network (web/FTP/SCP) |
| Serial Access |
RJ-45 serial port for local configuration |
| IP Configuration |
DHCP, BOOTP, or manual static IP setup |
Environmental:
|
Operating Temperature |
32 - 113 °F (0 - 45 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
