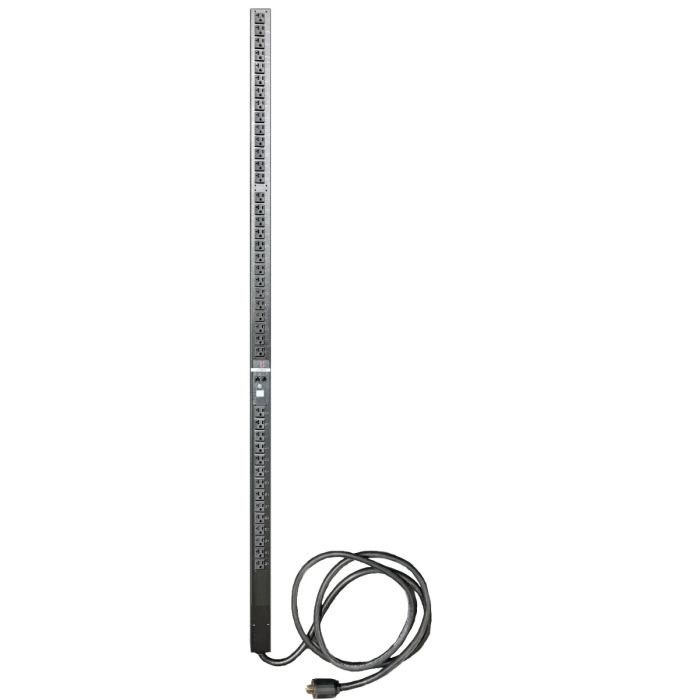

APC AP7892 Rack PDU 5700W Metered 0U, 208V 3-Phase, Output:(42)5-20R – Refurbished
APC AP7892 Rack PDU, Metered, 0U, 208V 3PH
Model: AP7892
Input Voltage: 208V 3-Phase
Input Connection: NEMA L21-20P
Cord Length: 10 ft (3 meters)
Output Voltage: 120V
Output Connections: (42) NEMA 5-20R
Condition: Refurbished PDU
Warranty: 1-Year Replacement Warranty Included
CAD $459.99
In stock
Manufacturer: APC
Model Description: APC Metered Rack PDU, 0U, 5.7kW, 208V 3-Phase, (42) NEMA 5-20R
Model: AP7892
Condition: Refurbished
Part Number: AP7892
Input Voltage: 208V 3-Phase
Input Connection: NEMA L21-20P
Output Voltage: 120V
Warranty: 1 Year Full Replacement Warranty
Product Description: The APC AP7892 is a 0U metered rack PDU designed for 208V 3-phase power distribution in data center environments. It provides real-time local current monitoring and delivers power through (42) NEMA 5-20R outlets. Ideal for high-density rack installations, it ensures efficient and reliable power distribution without remote switching or network management features.
APC AP7892 – Metered Rack PDU 0U, 5.7kW, 208V 3-Phase
APC AP7892 - Metered Rack PDU Specifications:
Input
|
Nominal Input Voltage |
208V 3-Phase |
|
Input Connection |
NEMA L21-20P |
|
Input Frequency |
50/60 Hz |
|
Acceptable Voltage Range |
200–250V |
|
Input Current |
20A max (16A derated continuous) |
|
Cord Length |
10 ft (3 m) |
|
Phase |
Three-Phase |
|
Load Capacity |
5700 VA |
Output
|
Output Voltage |
120V |
|
Output Receptacles |
(42) NEMA 5-20R |
|
Maximum Total Current Draw |
16A |
|
Outlet Control |
Not supported |
Metering / Display
|
Meter Type |
Local digital metering |
|
Measured Parameter |
Total current (A) |
|
Bank/Phase Monitoring |
Yes (selectable display) |
|
LED Indicators |
OK / Warning / Overload |
|
Remote Monitoring |
Basic (network required setup) |
Communications & Management
|
Network Interface |
10/100 Ethernet (RJ45) |
|
IP Configuration |
DHCP / BOOTP / Manual |
|
Web Access |
HTTP / HTTPS |
|
Protocols Supported |
SNMP v1/v2c, Telnet, SSH |
|
File Transfer |
FTP / SCP |
|
Logging |
Basic event logs |
|
Alarms |
Load threshold alerts |
Physical
|
Form Factor |
0U Vertical Rackmount |
|
Height |
70 in (1778 mm) |
|
Width |
2.2 in (56 mm) |
|
Depth |
1.7 in (44 mm) |
|
Weight |
5.68 kg |
|
Mounting |
Vertical / Side mount |
Environmental
|
Operating Temperature |
0–45 °C |
|
Storage Temperature |
-25–65 °C |
|
Operating Humidity |
5–95% non-condensing |
|
Operating Elevation |
0–3000 m |
|
Storage Elevation |
0–15000 m |
|
Mounting |
Vertical / Side mount |
