APC AP7901 Switched Rack PDU, L5-20P, 20A 120V Input, (8) 5-20 Output
Model: AP7901
Input: L5-20P - 20A 120V
Output: (8) NEMA 5-20R - 120V 20A
Refurbished PDU
1 Year Warranty
Back Order
Manufacturer: APC
Model: AP7901
Description: Refurbished PDU - APC AP7901, Rack PDU, Switched, 1U, 20A 120V, (8) 5-20
Input: L5-20P - 20A 120V
Output: (8) 5-20R
Condition: Refurbished
Warranty: 1 Year Warranty, additional warranty available

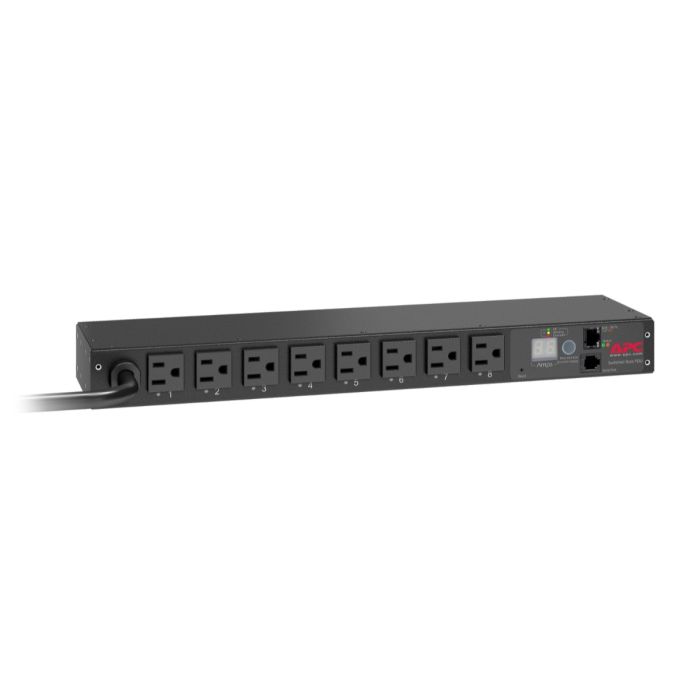

APC AP7901 Rack PDU
APC's Switched Rack Power Distribution Units (PDUs) are premium solutions to many of the power management problems seen in today's IT environments. Some of the problems are unauthorized use of power outlets, locked-up equipment, in-rush current, overloaded circuits, and the need of remote access to power outlets in the rack. The Switched Rack PDUs address these problems through individual outlet control, power on and off delays, current monitoring, alarm thresholds, and network management. Individual outlet control allows users to turn outlets on, turn outlets off, or recycle power to equipment, which can reboot locked-up equipment and avoid unauthorized use of outlets.
Main Features:
19 inch Rack-Mountable
Alarm Thresholds
Defineable Outlet Control
Flash Upgradeable
Multiple User Support
Power Sequencing
Remote Management Capabilities
|
Technical Specifications: |
||
|
|
|
|
|
Nominal Output Voltage |
120V |
|
|
Maximum Total Current Draw per Phase |
20A |
|
|
Output Connections |
(8) NEMA 5-20R |
|
|
|
|
|
|
Input |
|
|
|
Nominal Input Voltage |
120V |
|
|
Input Frequency |
50/60 Hz |
|
|
Regulatory Derated Input Current (North America) |
16A |
|
|
Input Connections |
NEMA 5-15P |
|
|
Cord Length |
3.66 meters |
|
|
Number of Power Cords |
1 |
|
|
Acceptable Input Voltage |
100-120 VAC |
|
|
Maximum Input Current per phase |
20A |
|
|
Load Capacity |
2400 VA |
|
|
|
|
|
Net Weight |
2.27 kg |
|
Maximum Height |
44.00 mm |
|
Maxiumum Width |
445.00 mm |
|
Maximum Depth |
108.00 mm |
|
|
|
|
Operating Environment |
0 - 45 °C |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 3000 meters |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 15,000 meters |
