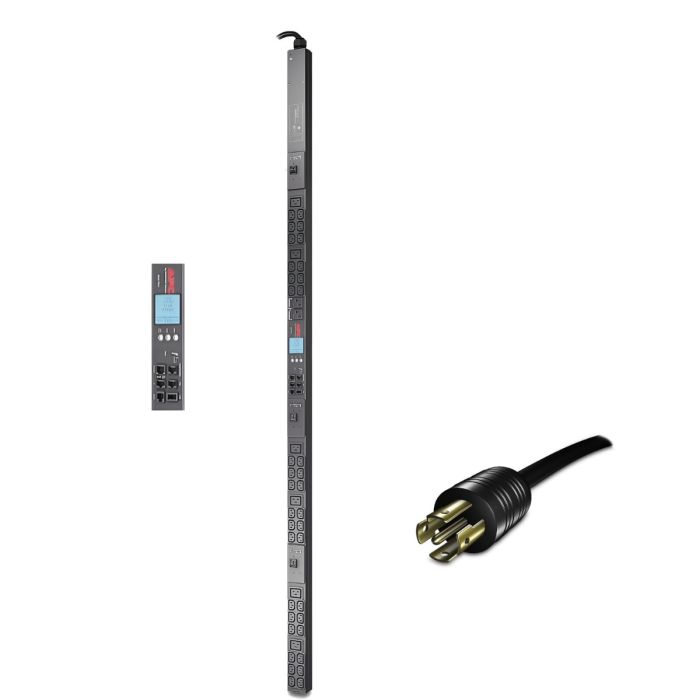

Main image Click to view image in fullscreen APC AP8865 Rack PDU 2G, MTD, 8600W, 30A, 208V, Out:(6)C19, (36)C13, (2)5-20R - Refurbished

APC AP8865 Rack PDU 2G, MTD, 8600W, 30A, 208V, Out:(6)C19, (36)C13, (2)5-20R - Refurbished

APC AP8865 Rack PDU 2G, Metered, 8.6kW, 0U, 30A, 208V 3-Phase
Model: AP8865
Input: 208V 3PH
Input Connections: NEMA L21-30P - 30A 208V

Output Voltage: 120V / 208V
Output Connections: (36) IEC C13, (6) IEC C19, (2) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + CAD $115.00

3 Year + CAD $201.25

In stock

Quantity

Manufacturer: APC
Model: AP8865
Description: AP8865 8.6kW Rack PDU 2G, Metered, 0U, 30A, 208V
Input: NEMA L21-30P - 30A 208V
Output: (6) IEC C19, (36) IEC C13, (2) NEMA 5-20R
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Description: APC AP8865 Rack PDU 2G, Metered, ZeroU, 8.6kW, 30A, 208V 3-Phase. Model: AP8865. Input Connection: NEMA L21-30P (30A, 208V 3PH). Output Connections: (36) IEC C13, (6) IEC C19, (2) NEMA 5-20R. Provides up to 8600VA capacity with real-time metering for current, voltage, power, and energy monitoring. Features built-in Ethernet management with Web UI, SNMP, SSH, Telnet, and CLI remote access, plus configurable overload alarms, event logging, and environmental monitoring support. Toolless 0U vertical rackmount design ideal for high-density data center environments. Refurbished PDU. 1 Year Full Replacement Warranty Included.

APC AP8865 8.6kW Rack PDU 2G, Metered, 0U, 30A, 208V User's Manual

AP8865 - APC Metered Rack PDU 2G Specifications:

Key Features:

Rack Height

Toolless 0U Mounting

Output Connections

(6) C19
(36) C13
(2) NEMA 5-20R

Nominal Output Voltage

120V, 208V

Nominal Input Voltage

208V

Input Connections

NEMA L21-30P

Cord Length

5.97 ft (1.82 m)

PDU Type

Metered

Form Factor

Vertical Rackmount (0U)

Load Capacity

8600VA

Phase

3-Phase

Remote Monitoring

Yes

Locking IEC Support

Yes

Environmental Monitoring Port

Yes (AP9335T / AP9335TH compatible)

Output:

Overload Protection	Yes
Nominal Output Voltage	120V / 208V
Output Connections	(36) IEC 60320 C13
	(6) IEC 60320 C19
	(2) NEMA 5-20R
Maximum Total Current Draw	30A
Metering	Real-time current, voltage, kW, kWh

Input:

Input frequency	50/60 Hz
Number of Power Cords	1
Load Capacity	8600VA
Maximum Input Current	30A
Maximum Line Current	30A
Regulatory Derated Input Current (North America)	24A

Physical:

Maximum Height	70.51 inches (1791MM, 179.1CM)
Maximum Width	2.2 inches (56MM, 5.6CM)
Maximum Depth	1.81 inches (46MM, 4.6CM)
Net Weight	16.67 lbs. (7.56KG)
Color	Black
Units per Pallet	48.0

Communications & Management:

Network Interface	Built-in Ethernet Port
Remote Access	Web UI, SNMP, CLI
Supported Protocols	HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet
Local Display	LED Display for Current & Load Monitoring
User Alarms	User-configurable overload alarms
Environmental Monitoring	Supported via optional AP9335T/AP9335TH sensor
Data Logging	Historical power and energy logging
Firmware Upgrades	Supported via network interface
Security Features	Password protection, encrypted remote access
Serial Configuration	Included serial configuration cable

Certifications & Compliance:

Certifications	UL 60950-1, CSA C22.2 No 60950
Compliance	RoHS
Warranty	1 Year Full Replacement Warranty

Environmental:

Operating Temperature	23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 10000ft (0 - 3048 meters)
Storage Temperature	-25 - 65 °C
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 50000 ft (0 - 15240meters)
