Description
Details
Manufacturer: APC
Model: AP8881

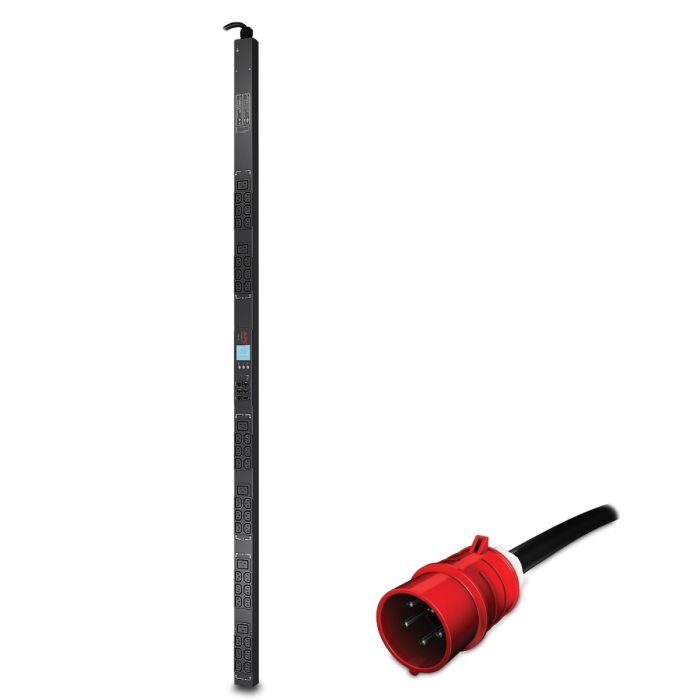

Description: Metered Rack PDU 2G, Zero U, 11kW, 230V, (36) C13 & (6) C19 - Refurbished
Input: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E - 400V 3PH
Output: (6) IEC 320 C19 (36) IEC 320 C13
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
APC AP8941 Specifications:
Output
|
Nominal Output Voltage |
230V |
|
Overload Protection |
No |
|
Maximum Total Current Draw |
16 |
|
Output Connections |
(6) IEC 320 C19 |
Input
|
Nominal Input Voltage |
400V 3PH |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
IEC 309 16A 3P+N+PE, |
|
Cord Length |
6ft (1.83meters) |
|
Number of Power Cords |
1 |
|
Load Capacity |
11000VA |
|
Maximum Input Current |
16A |
|
Maximum Line Current |
16A |
|
Regulatory Derated Input Current (North America) |
16A |
Physical
|
Maximum Height |
70.5 inches (1791mm, 179.1cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
1.72 inches (44mm, 4.4cm) |
|
Net Weight |
14.04 lbs. (6.38 kg) |
|
Shipping Weight |
17.64 lbs. (8.02 kg) |
|
Shipping Height |
78.75 inches (2000mm, 200.0cm) |
|
Shipping Width |
6.38 inches (162mm, 16.2cm) |
|
Shipping Depth |
4.2 inches (107mm, 10.7cm) |
|
Color |
Black |
Environmental
|
Operating Temperature |
23 - 113 °F (-5 - 45 °C) |
|
Operating Relative Humidity |
5 - 95 % |
|
Operating Elevation |
0-10000ft (0-3000meters) |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
5 - 95 % |
|
Storage Elevation |
0-50000ft (0-15000meters) |
Additional Info
Additional Info
| Manufacturer | No |
|---|---|
| Form Factor | No |
| Waveform in Battery Mode | No |
| Input Voltage | No |
| Output (VA) | No |
| Output Voltage | No |
| PDU Total Outlets | 42 |
