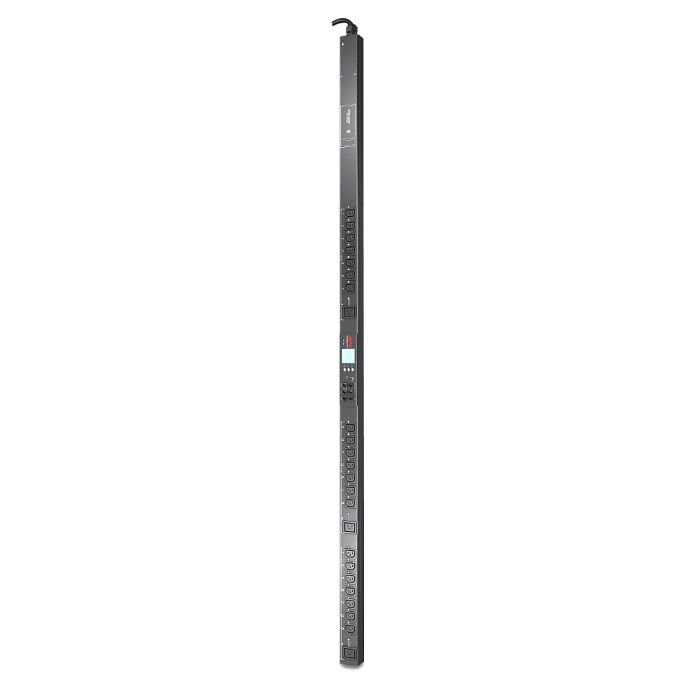

APC AP8961 Rack PDU, Switched, Zero U, 20A, 208V
Model: AP8961
Input: 208V 3PH
Input Connections: NEMA L21-20P
Cord Length: 6ft (1.8meters)
Output: 208V
Output Connections: (3) IEC 60320 C19, (21) IEC 60320 C13
Refurbished PDU
1 Year Replacement Warranty
In stock
Manufacturer: APC
Model Description: APC Switched Rack PDU 2G, 2U, 30A 208V, (12) C13 & (4) C19
Condition: Refurbished
Part Number: AP8961
Output Voltage: 208V
Input Voltage: 200V-208V 30A
Warranty: 1 Year Full Replacement Warranty
AP8961 Specifications:
Key Features:
Output Connections |
|
||||
Nominal Output Voltage |
208V |
||||
Nominal Input Voltage |
208V 3PH |
||||
Input Connections |
NEMA L21-20P |
||||
Cord Length |
6ft (1.8meters) |
Output:
Overload Protection |
No |
Maximum Total Current Draw |
20 |
Input:
Input frequency |
50/60 Hz |
Number of Power Cords |
1 |
Load Capacity |
5700VA |
Maximum Input Current |
20A |
Maximum Line Current |
20A |
Regulatory Derated Input Current (North America) |
16A |
Physical:
Maximum Height |
70.51 inches (1791mm, 179.1cm) |
Maximum Width |
2.2 inches (56mm, 5.6cm) |
Maximum Depth |
1.81 inches (46mm, 4.6cm) |
Net Weight |
15.23 lbs. (6.91kg) |
Shipping Weight |
19.44 lbs. (8.82kg) |
Shipping Height |
78.82 inches (2002mm, 200.2cm) |
Shipping Width |
6.5 inches (165mm, 16.5cm) |
Shipping Depth |
4.49 inches (114mm, 11.4cm) |
Color |
Black |
Environmental:
Operating Temperature |
23 - 140°F (-5 - 60°C) |
Operating Relative Humidity |
5 - 95% |
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
Storage Temperature |
-25 - 65°C |
Storage Relative Humidity |
5 - 95% |
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
