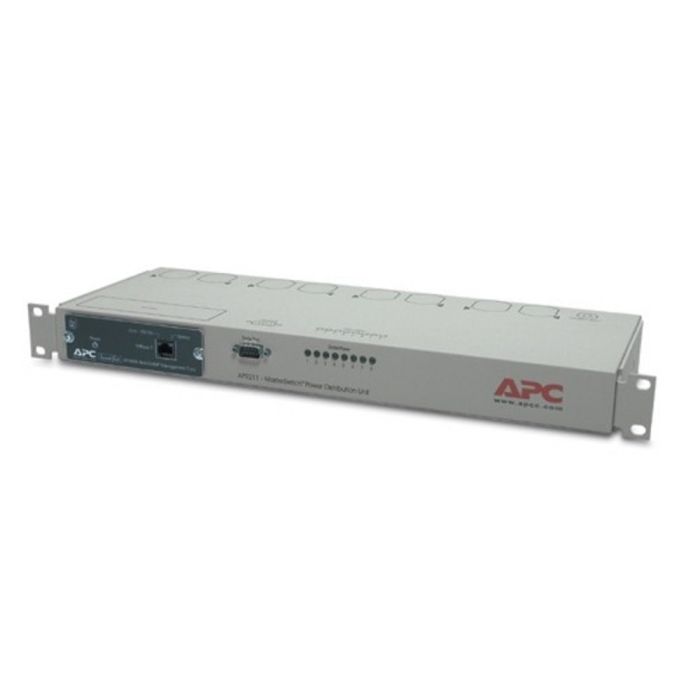

APC AP9217 Switched Rack PDU MasterSwitch, 1U, 20A, 120V, (8)5-15
AP9217 APC Switched Rack PDU MasterSwitch, 1U, 20A, 120V, (8)5-15
Input: 100V
Input Connections: NEMA L5-20P
Cord Length:12 feet ( 3.66 meters)
Output: 100V
Output Connections: NEMA 5-15R
CAD $189.74
Back Order
Manufacturer: APC
Model: AP9217 APC Switched Rack PDU MasterSwitch, 1U, 20A, 120V, (8)5-15
Condition: Refurbished
Part Number: AP9217
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The AP9217 comes refurbished with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
AP9217 Specifications:
Output:
|
Nominal Output Voltage |
100V |
||
|
Maximum Total Current Draw per Phase |
16A |
||
|
Output Connections |
|
||
|
Overload Protection |
Yes |
Input:
|
Nominal Input Voltage |
100V |
||
|
Input Frequency |
50/60 Hz |
||
|
Input Connections |
|
||
|
Cord Length |
3.66 meters |
||
|
Number of Power Cords |
1 |
||
|
Acceptable Input Voltage |
90-132 VAC |
||
|
Maximum Line Current per phase |
16A |
||
|
Maximum Input Current per phase |
16A |
||
|
Load Capacity |
1920 VA |
||
|
Overload Capacity (at nominal rated input V) |
20A |
Physical:
|
Net Weight |
3.18 KG |
|
Maximum Height |
44.00 mm |
|
Maximum Width |
432.00 mm |
|
Maximum Depth |
165.00 mm |
|
Shipping Weight |
4.55 KG |
|
Shipping Height |
70.00 mm |
|
Shipping Width |
470.00 mm |
|
Shipping Depth |
343.00 mm |
|
Color |
Beige |
|
Units per Pallet |
100.00 |
Environmental:
|
Operating Environment |
0 - 45 °C |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0-3000 meters |
|
Storage Temperature |
-15 - 65 °C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0-15000 meters |
