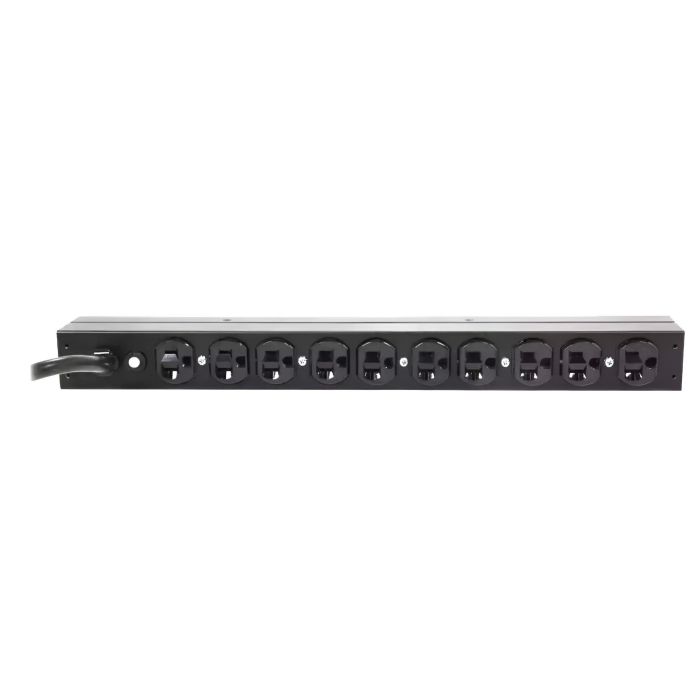

APC AP9563 Basic Rack PDU 1U 2400VA 20A 120V, Output:(10)5-20R

Manufacturer: APC
Model: AP9563 APC Basic Rack PDU 1U, 20A, 120V, (10)5-20R ; 5-20P
Condition: Refurbished
Part Number: AP9563
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Description: The APC AP9563 is a Basic Rack PDU designed for reliable power distribution in IT and network environments. It is a 1U rack-mounted unit operating at 120V with a 20A input via NEMA 5-20P plug, delivering up to 2400VA of total load capacity. It provides (10) NEMA 5-20R outlets for efficient power distribution to servers, networking devices, and rack equipment. This is a non-switched PDU focused on simple, dependable power delivery without remote outlet control or monitoring features. It includes a 3.7 m power cord, supports 100–120V operation, and features a compact steel chassis designed for quick installation in standard rack systems. Ideal for cost-effective rack power deployment, it is backed by a 1-year full replacement warranty.

APC AP9563 Basic Rack PDU 1U 1920VA 20A 120V, Output:(10)5-20R - User Manual

AP9563 Specifications:

Output:

Input:

Physical:

Environmental:
