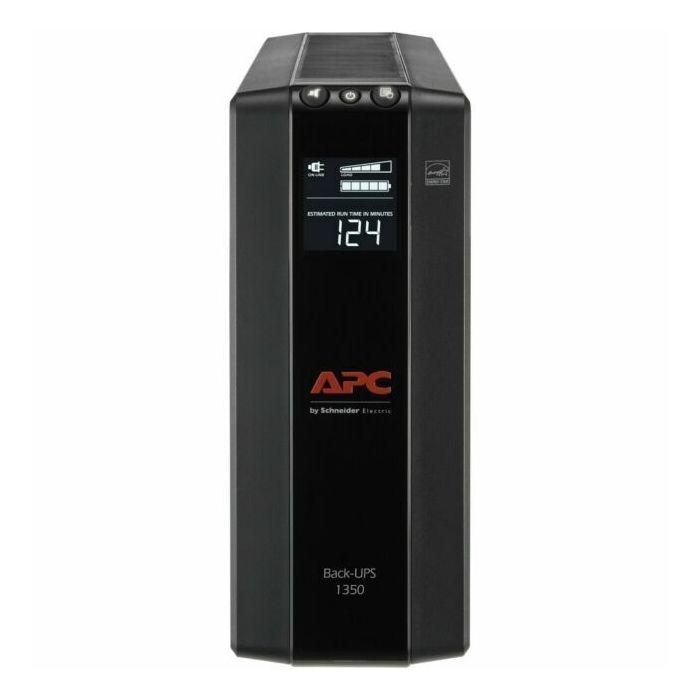

APC Back-UPS Compact Tower 1350VA 810W 120V 15A AVR LCD BX1350M - Refurbished
APC Back-UPS Pro 1350VA 810W 120V 15AÂ
Model: BX1350M
Input:Â NEMA 5-15P (120V - 15A)
Output: (5) NEMA 5-15R (Surge Protection), (5) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Stepped Approximation to a sine wave
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $172.49
Back Order
Manufacturer: APC
Model: APC Back-UPS 1350 1350VA 810W Compact Tower AVR, LCD, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BX1350M
Maximum output: 810W / 1350VA
Typical backup time at half load: 4.2 minutes (450 Watts)
Typical backup time at full load: 10.2 minutes (810 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS 1350 1350VA 810W Compact Tower AVR, LCD BX1350M Manual
BX1350M - APC Back-UPS 1350 1350VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
810W |
||||
|
Rated Power in VA |
1350VA |
||||
|
Output Connection Type |
|
||||
|
Cable Length |
5.90 ft (1.8 m) |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Height |
9.84 in (25 cm) |
|
Width |
3.94 in (10 cm) |
|
Depth |
15.04 in (38.2 cm) |
|
Net Weight |
22.48 lb(US) (10.2 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Efficiency at Full Load |
88 - 139V |
|
Maximum Input Current per Phase |
12A |
|
Switching Current Capacity |
15A |
Output:
|
Max Configurable Power (Watts) |
810W |
|
Output Frequency (sync to mains) |
60 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum Output Current |
12A |
|
Maximum Configurable Power in VA |
1350VA |
|
Transfer Time |
8ms typical : 10 ms maximum |
Conformance:
|
Product Certifications |
California (CEC) Battery Charger |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0 - 95% |
|
Operating Altitude |
0 - 3048meters |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240 m) |
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
68.0 Btu/h |
Batteries & Runtime:
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
11W rated |
|
Battery Power in VAH |
172 VAh capacity |
|
Replacement Battery |
APCRBC123 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Interface Port(s) |
USB |
Surge Protection and Filtering:
|
Surge Energy Rating |
789 J
|
|
Filtering |
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in |
|
Data line protection |
Coaxial cable for CATV/SATV/modem/audio-video |
