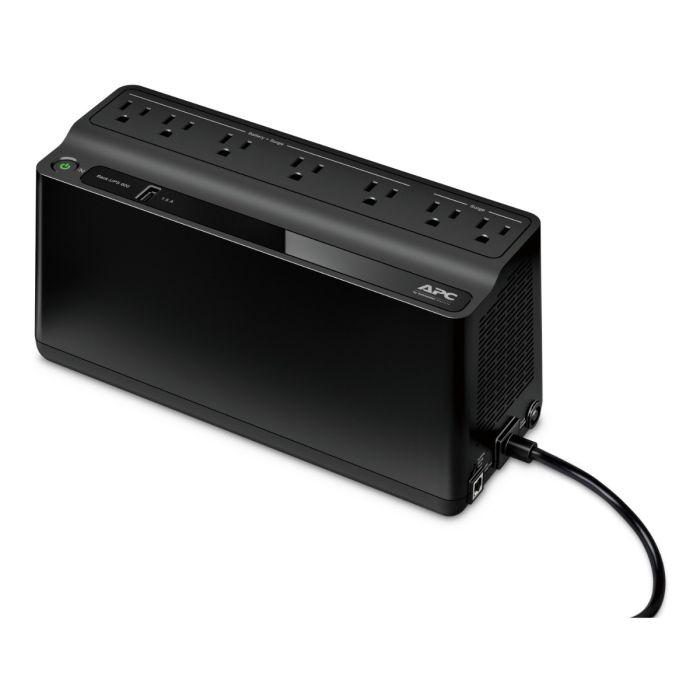

Main image Click to view image in fullscreen APC Back-UPS 600VA 330W 120V 15A Output: (7)5-15R, BE600M1 - Refurbished

APC Back-UPS 600VA 330W 120V 15A Output: (7)5-15R, BE600M1 - Refurbished

APC Back-UPS 600VA 330W 120V 15A
Model: BE600M1
Input: NEMA 5-15P (120V - 15A)
Output: (5) NEMA 5-15R, (2) NEMA 5-15R Surge
Standby UPS - Stepped Approximation to Sinewave
New batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $34.50

3 Year + CAD $60.37

In stock

Quantity

Manufacturer: APC
Model: APC Back-UPS 600VA, 330W, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BE600M1
Maximum output: 330W / 600VA
Typical backup time at half load: 17.2 minutes (165 Watts)
Typical backup time at full load: 2.7 minutes (330 Watts)
Warranty: 3-year full replacement warranty

APC BACK-UPS 600VA 330W BE600M1 - User Manual

BE600M1 - APC BACK-UPS 600VA 330W Specifications:

Key Features:

Output Power Capacity

330W / 600VA

Output Connections

(5) NEMA 5-15R (Battery Backup)
(2) NEMA 5-15R (Surge Protection)

Nominal Output Voltage

120V

Nominal Input Voltage

120V

Input Connections

NEMA 5-15P

Cord Length

5 ft (1.5 m)

Output:

Max Configurable Power (Watts)	330W / 600VA
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz Sync to mains
Topology	Standby
Waveform type	Stepped approximation to a sinewave
Transfer Time	6 ms typical : 10 ms maximum

Input:

Input frequency	50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations	92 - 139V
Number of Power Cords	1

Batteries & Runtime:

Battery type	Lead-acid battery
Typical Recharge Time	10 hour(s)
Replacement Battery	APCRBC154
Expected Battery Life (years)	3 - 5
Battery Charge Power (Watts)	7 Watts
Battery Volt-Amp-Hour Capacity	66 VAH

Communications & Management:

Interface Port(s)	USB
Control Panel	LED status display with on line : on battery : replace battery and building wiring fault
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering:

Surge Energy Rating	490 Joules
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum Height	7.7 in (19.6 cm)
Maximum Width	6.6 in (16.8 cm)
Maximum Length	14.3 in (36.3 cm)
Net Weight	8.40 lb(US) (3.81 kg)
Color	Black

Enviromental:

Ambient air temperature for operation	32…104 °F (0…40 °C)
Relative humidity	0…90 %
Operating altitude	0...3000 ft
Ambient air temperature for storage	5…113 °F (-15…45 °C)
Storage Relative Humidity	10…95 %
Storage altitude	0…5000 ft (0…1524 m)
Acoustic level	35 dBA
Heat dissipation	16 Btu/h
