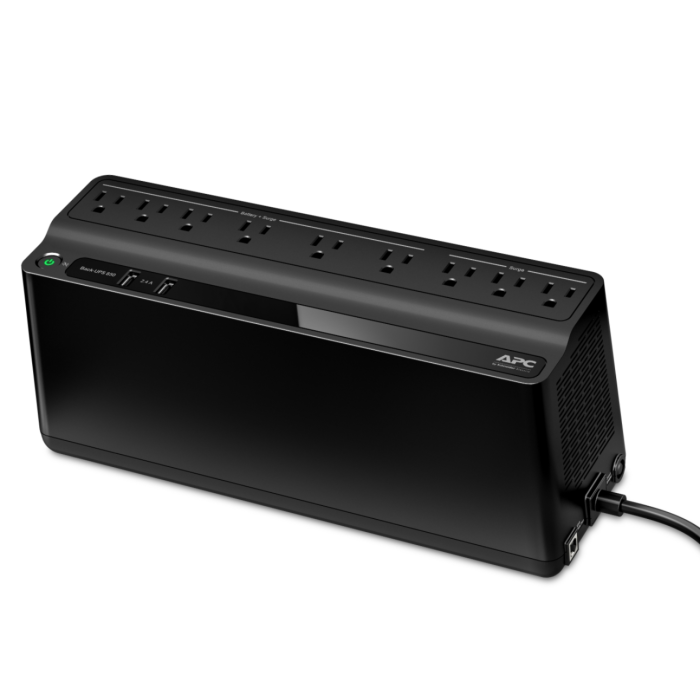

APC Back-UPS 850VA 450W 120V 15A Stepped Sinewave Output:(9)5-15R, BE850G2 - Refurbished
APC Back-UPS 850VA 450W 15A 120VÂ
Model: BE850G2
Input:Â NEMA 5-15P (120V - 15A)
Output: (9) NEMA 5-15RÂ
Standby UPS -Â Stepped Sinewave
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $149.49
In stock
Manufacturer: APC
Model: APC Back-UPS 850VA, 450W, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BE850G2
Maximum output: 450WÂ /Â 850VA
Typical backup time at half load: 11.4 minutes (225 Watts)
Typical backup time at full load: 2.4 minutes (450 Watts)
Warranty: 1 year full replacement warranty
APC BACK-UPS 850VA 450W BE850G2 - User Manual
BE850G2 - APC BACK-UPS 850VA 450W Specifications:
Key Features:
|
Output Power Capacity |
450W / 850VA |
||||
|
Output Connections |
|
||||
|
Nominal Output Voltage |
120V |
||||
|
Nominal Input Voltage |
120V |
||||
|
Input Connections |
|
||||
|
Cord Length |
5 ft (1.5 m) |
Output:
|
Max Configurable Power (Watts) |
450W / 850VA |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz Sync to mains |
|
Topology |
Standby |
|
Waveform type |
Stepped approximation to a sinewave |
|
Transfer Time |
6 ms typical : 10 ms maximum |
Input:
|
Input frequency |
50/60 Hz +/- 3 Hz Auto-sensing |
|
Input voltage range for main operations |
92 - 139V |
|
Number of Power Cords |
1 |
Batteries & Runtime:
|
Battery type |
Lead-acid battery |
|
Typical Recharge Time |
8hour(s) |
|
Replacement Battery |
RBC17 |
|
Expected Battery Life (years) |
2 - 5 |
|
Battery Charge Power (Watts) |
13 Watts |
|
Battery Volt-Amp-Hour Capacity |
102 |
Communications & Management:
|
Interface Port(s) |
USB |
|
Control Panel |
LED status display with on line : on battery : replace battery and building wiring fault |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
354 Joules |
Physical:
|
Maximum Height |
5.47 inches (139MM, 13.9CM)
|
|
Maximum Width |
12.87 inches (327MM, 32.7CM) |
|
Maximum Depth |
4.13 inches (105MM, 10.5CM) |
|
Net Weight |
9.04 lbs. (4.1KG) |
|
Color |
Black |
Â
Enviromental:
|
Ambient air temperature for |
32…104 °F (0…40 °C)
|
|
Relative humidity |
0…95 % |
|
Operating altitude |
0...3000 ft |
|
Ambient air temperature for |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
10…90 % |
|
Storage altitude |
0…5000 ft (0…1524 m) |
|
Acoustic level |
45 dBA |
|
Heat dissipation |
19.249 Btu/h |
