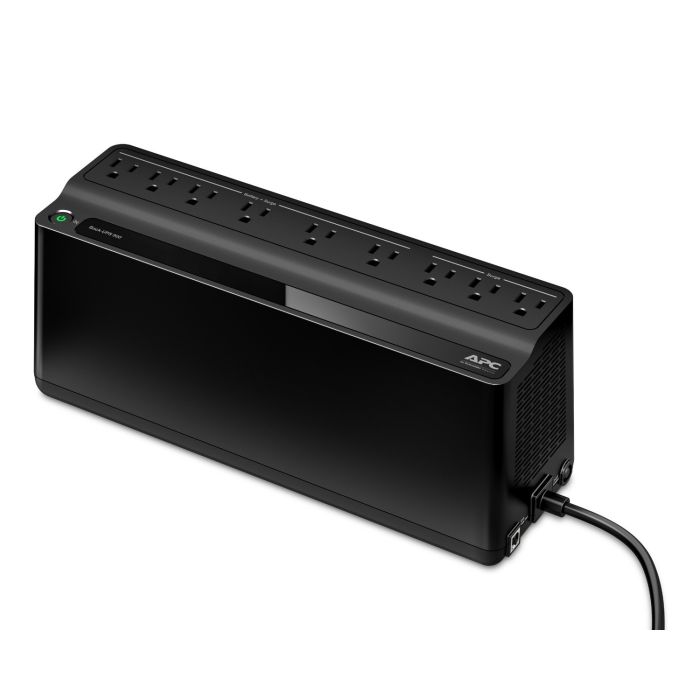

APC Back-UPS 900VA 480W 120V Output:(6)5-15R Batt,(3)5-15R Surge, BN900M-CA – Refurbished
APC Back-UPS 900VA 480W 120V 15A Floor/Wall Mount
Model: BN900M-CA
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery & Surge), (3) NEMA 5-15R (Surge)
Standby UPS – Stepped Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $169.99
In stock
Manufacturer: APC
Model: APC Back-UPS 900VA 480W 120V
Condition: New batteries, Refurbished UPS
Part Number: BN900M-CA
Maximum output: 480W / 900VA
Warranty: 1 Year Full Replacement Warranty
APC Back-UPS 900VA 480W 120V - BN900M-CA - User's Manual
BN900M-CA Specifications:
Main:
|
Main Input Voltage |
120 V |
|
Rated Power in W |
480 W |
|
Rated Power in VA |
900 VA |
|
Output Connection Type |
(6) NEMA 5-15R (Surge), (3) NEMA 5-15R (Surge) |
|
Cable Length |
5 ft (1.5 m) |
|
Battery Type |
Lead-acid battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Height |
5.5 in (139 mm) |
|
Width |
12.9 in (32.7 cm) |
|
Depth |
4.1 in (10.5 cm) |
|
Net Weight |
9.04 lb (4.1 kg) |
|
Mounting Preference |
No preference |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Input Voltage Limits |
92 – 139 V |
Output:
|
Max Configurable Power (Watts) |
480 W |
|
Max Configurable Power (VA) |
900 VA |
|
Output Frequency |
50/60 Hz +/- 1 Hz unsynchronized |
|
Topology |
Standby |
|
Waveform Type |
Stepped approximation to sinewave |
|
Transfer Time |
6 ms typical : 10 ms maximum |
Conformance:
|
Product Certifications |
California Energy Commission (CEC) |
Environmental:
|
Ambient Air Temperature for Operation |
32 – 104 °F (0 – 40 °C) |
|
Relative Humidity |
0 – 95 % non-condensing |
|
Operating Altitude |
0 – 10000 ft |
|
Ambient Air Temperature for Storage |
5 – 113 °F (-15 – 45 °C) |
|
Storage Relative Humidity |
0 – 95 % non-condensing |
|
Storage Altitude |
0 – 50000 ft (0 – 15240 m) |
|
Acoustic Level |
45 dBA |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
8 h |
|
RBC Quantity |
1 |
|
Battery Charger Power (Watts) |
10 W |
|
Replacement Battery |
BATT17-1209 / RBC17 |
Communications & Management:
|
Alarm |
Alarm when on battery: distinctive low battery alarm; overload continuous tone alarm |
|
Control Panel |
LED status display with on line : on battery : replace battery and building wiring fault |
Surge Protection and Filtering:
|
Surge Energy Rate |
354 J |
|
Filtering |
N/A |
|
Let Through Voltage Rating |
N/A |
