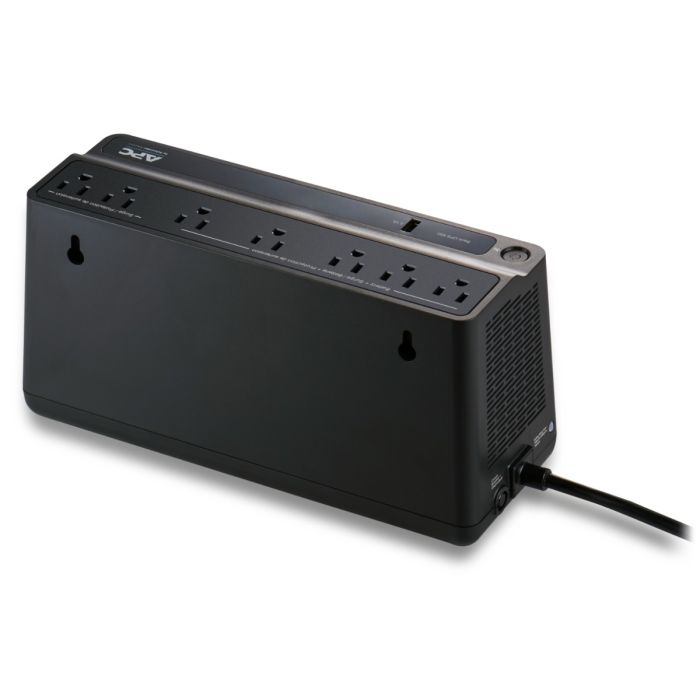

APC Back-UPS 650VA 360W 120V Output:(5)5-15R Batt, (2)5-15R Surge, BVN650M1-CA – Refurb
APC Back-UPS 650VA 360W 120V 15A Floor/Wall Mount
Model: BVN650M1-CA
Input: NEMA 5-15P (120V - 15A)
Output: (5) NEMA 5-15R (Battery & Surge), (2) NEMA 5-15R (Surge)
Line Interactive UPS – Stepped Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $149.49
In stock
Manufacturer: APC
Model: APC Back-UPS 650VA 360W 120V
Condition: New batteries, Refurbished UPS
Part Number: BVN650M1-CA
Maximum output: 360W / 650VA
Typical backup time at half load: ~14 minutes (180 W)
Typical backup time at full load: ~3.5 minutes (360 W)
Warranty: 1 Year Full Replacement Warranty
APC Back-UPS 650VA 360W 120V - BVN650M1-CA - User's Manual
BVN650M1-CA Specifications:
Main:
|
Main Input Voltage |
120 V |
|
Rated Power in W |
360 W |
|
Rated Power in VA |
650 VA |
|
Output Connection Type |
(5) NEMA 5-15R (Surge), (2) NEMA 5-15R (Battery & Surge) |
|
Cable Length |
6 ft (1.83 m) |
|
Battery Type |
Lead-acid internal, user replaceable |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Height |
5.5 in (139 mm) |
|
Width |
4.1 in (105 mm) |
|
Depth |
10.8 in (274 mm) |
|
Net Weight |
6.8 lb (3.1 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Wall / Floor Mount |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Input Voltage Limits |
88 – 143 V |
Output:
|
Max Configurable Power (Watts) |
360 W |
|
Max Configurable Power (VA) |
650 VA |
|
Output Frequency |
50/60 Hz +/- 1 Hz unsynchronized |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to sinewave |
|
Transfer Time |
6 ms typical : 10 ms maximum |
Conformance:
|
Product Certifications |
cTUVus, CEC, ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 – 104 °F (0 – 40 °C) |
|
Relative Humidity |
0 – 90 % |
|
Operating Altitude |
0 – 6666 ft |
|
Ambient Air Temperature for Storage |
5 – 113 °F (-15 – 45 °C) |
|
Storage Relative Humidity |
0 – 95 % non-condensing |
|
Storage Altitude |
0 – 10000 ft (0 – 3048 m) |
|
Acoustic Level |
N/A |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
8 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
12 V |
|
Battery Capacity |
7.2 Ah |
|
Battery Charger Power (Watts) |
8 W |
|
Replacement Battery |
APCRBCV211 |
|
Battery Life |
3 – 5 years |
Communications & Management:
|
Alarm |
Alarm when on battery: distinctive low battery alarm; overload continuous tone alarm |
|
Control Panel |
LED status display with online / on battery |
Surge Protection and Filtering:
|
Surge Energy Rate |
490 J |
|
Filtering |
Full time multi-pole noise filtering |
|
Let Through Voltage Rating |
N/A |
