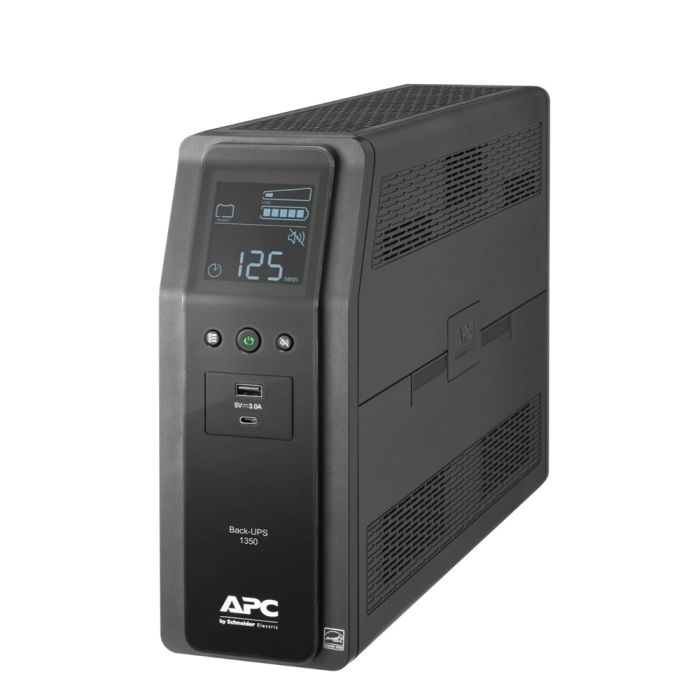

APC Back-UPS Pro 1350VA 810W 120V BN1350M2 - Refurbished
APC Back-UPS Pro 1350VA 810W
Model: BN1350M2
Input: NEMA 5-15P (120V - 15A)
Output: (4) 5-15R (Surge), (6) 5-15R (Battery & Surge)
Line Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $195.49
Back Order
Manufacturer: APC
Model: APC Back-UPS Pro 1350VA 810W 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: BN1350M2
Maximum output: 810W / 1350VA
Typical backup time at half load: 10.21 minutes (405 Watts)
Typical backup time at full load: 2 minutes (810 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS Pro 1350VA 810W 120V BN1350M2 Manual
BN1350M2 - APC Back-UPS Pro 1350VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Kw Rating |
810W |
||||
|
Rated power in VA |
1350VA |
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Battery Type |
Lead-Acid battery |
General:
|
Provided Equipment |
Coaxial Cable |
|
Number of power module free slots |
0 |
|
Number of power module filled slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
10.24 inches (26cm) |
|
Width |
3.94 inches (10cm) |
|
Depth |
14.49 inches (36.8cm) |
|
Net Weight |
22.93 lbs. (10.4kg) |
|
Mounting Mode |
Not rack-mountable |
|
USB compatible |
No |
Input:
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Efficiency at full load |
88...139 V |
|
Typical Recharge Time |
16 hour(s) |
|
Maximum Input Current per Phase |
12 A |
|
Switching Current Capacity |
15 A |
Output:
|
Max Configurable Power (Watts) |
810 W |
|
Output Frequency |
60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum configurable power in VA |
1350VA |
|
Transfer Time |
8ms typical : 10 ms maximum |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Relative Humidity |
0…95 % non-condensing |
|
Operating altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…104 °F (-15…40 °C) |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Storage altitude |
0…10000 ft (0.00…3048.00 m) |
|
Acoustic level |
45 dBA |
Batteries & Runtime:
|
Included Battery Modules |
1
|
|
Battery Slots Empty |
0 |
|
Typical recharge time |
16 h |
|
Battery Charge Power (Watts) |
10 W rated |
|
Battery power in VAH |
153 VAh capacity |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
APCRBC162 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
Surge Protection and Filtering:
|
Surge Energy Rating |
1080 J
|
|
Filtering |
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
|
