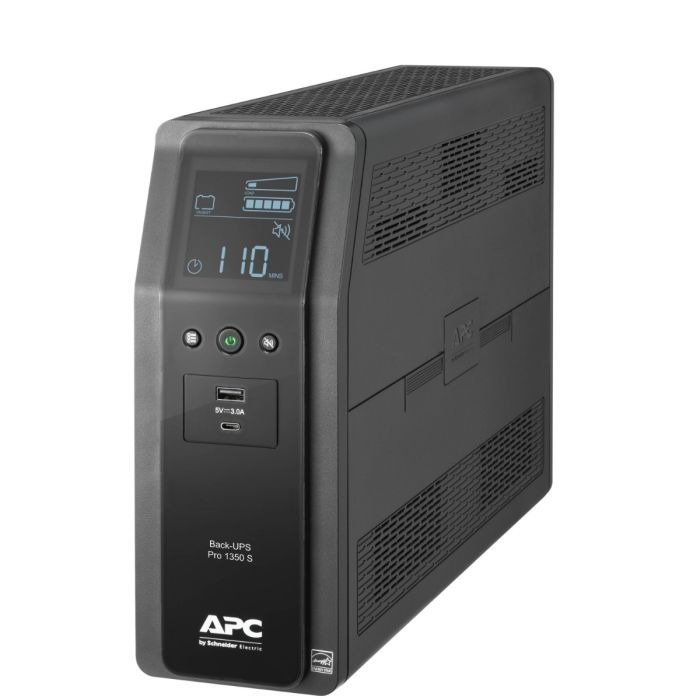

APC Back-UPS Pro 1350VA 810W Tower 120V 15A Output: (6)5-15R, BR1350MS - Refurbished
APC Back-UPS Pro 1350VA 810W Tower 120V
Model: BR1350MS
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R, (4) NEMA 5-15R (Surge)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $199.99
Back Order
Manufacturer: APC
Model: APC Back-UPS Pro 1350VA 810W Tower 120V
Condition: New batteries, refurbished UPS
Part Number: BR1350MS
Maximum output: 810W / 1350VA
Typical backup time at half load: 10.21 minutes (405 Watts)
Typical backup time at full load: 2 minutes (810 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS Pro 1350VA 810W 120V BR1350MS User's Manual
BR1350MS - APC Back-UPS Pro 1350VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Kw Rating |
810W |
||||
|
Rated Power in VA |
1350VA |
||||
|
Product or Component Type |
Uninterruptible power supply (UPS) |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
2 |
|
Battery Charge Power (Watts) |
10 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
APCRBC161 |
|
Extendable Run Time |
0 |
General:
|
Product Web Sub-family |
Gaming performance |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Height |
10.24 in (26 cm) |
|
Width |
3.94 in (10 cm) |
|
Depth |
14.49 in (36.8 cm) |
|
Net Weight |
25.79 lb(US) (11.7 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Efficiency at Full Load |
88...147V |
|
Maximum Input Current per Phase |
12A |
|
Switching Current Capacity |
15A |
Output:
|
Max Configurable Power (Watts) |
810W |
|
Output Frequency (sync to mains) |
60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Maximum Configurable Power in VA |
1350VA |
|
Transfer Time |
8ms typical : 10 ms maximum |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA)
NOM TUV C-US certified |
Environmental:
|
Ambient Air Temperature for Operation |
32…104°F (0…40°C)
|
|
Relative Humidity |
0…95% non-condensing
|
|
Operating Altitude |
0...10000 ft
|
|
Ambient Air Temperature for Storage |
5…104°F (-15…40°C)
|
|
Storage Relative Humidity |
0…95% non-condensing
|
|
Storage Altitude |
0…10000 ft (0.00…3048.00 m)
|
|
Acoustic Level |
45 dBA
|
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
Surge Protection & Filtering:
|
Surge Energy Rating |
1080 J
|
|
Filtering |
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
|
