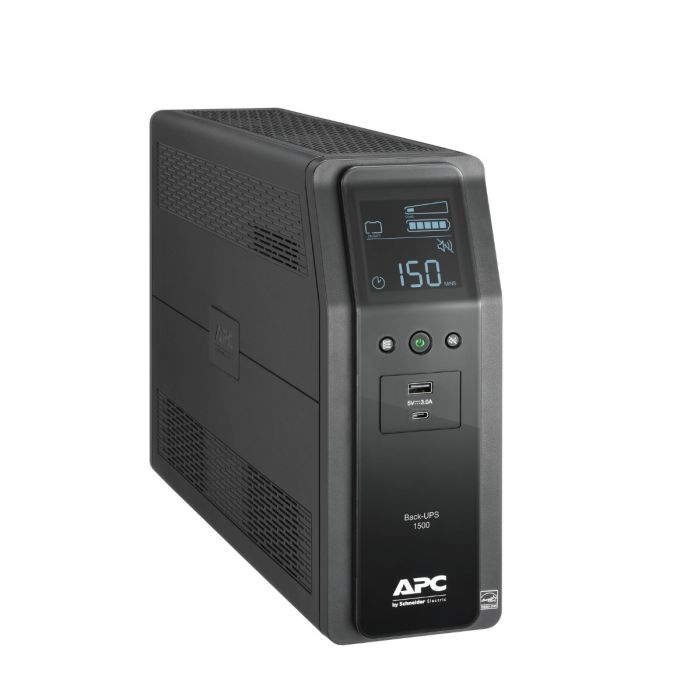

APC Back-UPS Pro BN 1500VA 900W 120V Output: (10)5-15R, BN1500M2 - Refurbished
APC Back-UPS Pro BN 1500VA 900W
Model: BN1500M2
Input:Â NEMA 5-15P (120V - 15A)
Output: (4) NEMA 5-15R (Surge Protection), (6) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Stepped Sine wave
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $249.99
Back Order
Manufacturer: APC
Model:Â APC Back-UPS PRO BN 1500VA 900W, AVR, LCD, 120V
Condition: New batteries, refurbished UPS
Part Number: BN1500M2
Maximum output: 900WÂ /Â 1500VA
Typical backup time at half load: 11.4 minutes (450 Watts)
Typical backup time at full load: 3.1 minutes (900 Watts)
Warranty: 1 year full replacement warranty
APC BACK-UPS PRO BN 1500VA 900W LCD BN1500M2 - User Manual
BN1500M2 - APC BACK-UPS PRO BN 1500VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
900W |
||||
|
Rated Power in VA |
1500VA |
||||
|
Output Connection Type |
|
||||
|
Input Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
10.24 in (26 cm) |
|
Width |
3.94 in (10 cm) |
|
Depth |
14.49 in (36.8 cm) |
|
Net Weight |
25.13 lb(US) (11.4 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Efficiency at Full Load |
88Â - 139V |
|
Maximum Input Current per Phase |
12A |
|
Switching Current Capacity |
15A |
Output:
|
Max Configurable Power (Watts) |
900W |
|
Output Frequency (Sync to Mains) |
60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped Approximation to a Sinewave |
|
Maximum Configurable Power in VA |
1500VA |
|
Transfer Time |
8ms typical: 10 ms maximum |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0Â - 95% non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 104°F (-15 - 40°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 10000 ft (0.00Â - 3048.00 m) |
|
Acoustic Level |
45 dBA |
Batteries & Runtime:
|
Included Battery Modules |
1
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
11 W rated |
|
Battery Power in VAH |
180 VAh capacity |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC161 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
Multi-function LCD Status and Control Console
|
|
Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
1080 J
|
|
Filtering |
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in |
|
Data Line Protection |
Coaxial cable for CATV/SATV/modem/audio-video |
