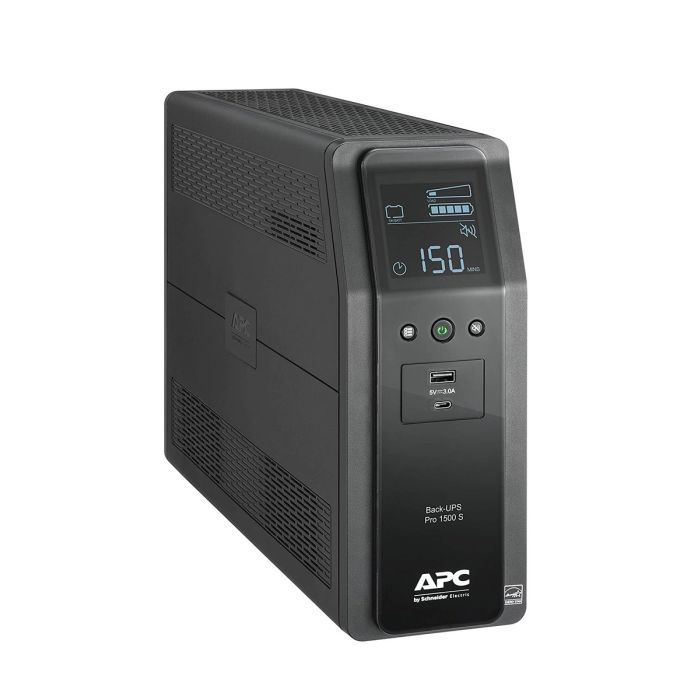

APC Back-UPS Pro BR 1500VA 900W 120V Output: (10)5-15R, BR1500MS2 - Refurbished
APC Back-UPS Pro BR 1500VA 900W
Model: BR1500MS2
Input: NEMA 5-15P (120V – 12A)
Output: (4) NEMA 5-15R (Surge Protection), (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS – Sine Wave
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $279.99
Back Order
Manufacturer: APC
Model: APC Back-UPS Pro 1500VA 900W Compact Tower, AVR, LCD, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BR1500MS2
Maximum output: 900W / 1500VA
Typical backup time at half load: 14.5 minutes (450 Watts)
Typical backup time at full load: 4.1 minutes (900 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS Pro 1500VA 900W Tower 120V BR1500MS2 - User Manual
Â
BR1500MS2 - APC BACK-UPS PRO 1500VA Specifications:
Main
|
Main Input Voltage |
120V |
|
Rated Power in W |
900W |
|
Rated Power in VA |
1500VA |
|
Output Connection Type |
(6) NEMA 5-15R (Battery Backup) / (4) NEMA 5-15R (Surge Protection) |
|
Cable Length |
6 ft (1.83 m) |
|
Number of Cables |
1 |
|
Battery Type |
Lead-Acid Battery |
|
Input Connections |
NEMA 5-15P |
Â
General
|
Provided Equipment |
Coaxial cable / User manual / USB cable |
|
Product Web Sub-family |
Gaming performance |
|
Power Module Free Slots |
0 |
|
Power Module Filled Slots |
0 |
|
Redundant |
No |
Â
Physical
|
Color |
Black aluminium |
|
Height |
10.2 in (260 mm) |
|
Width |
3.9 in (100 mm) |
|
Depth |
14.5 in (368 mm) |
|
Net Weight |
27.6 lb (12.5 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Â
Input
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Input Voltage Limits |
88 – 147V |
|
Maximum Input Current per Phase |
12 A |
|
Switching Current Capacity |
15 A |
Â
Output
|
Max Configurable Power (Watts) |
900W |
|
Output Frequency |
60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine Wave |
|
Max Configurable Power in VA |
1500VA |
|
Transfer Time |
8 ms typical / 10 ms maximum |
Â
Conformance
|
Product Certifications |
ENERGY STAR V2.0 (USA), NOM, TUV C-US certified |
Â
Environmental
|
Operating Temperature |
32 – 104°F (0 – 40°C) |
|
Relative Humidity |
0 – 95 % non-condensing |
|
Operating Altitude |
0 – 3000 ft |
|
Storage Temperature |
5 – 104°F (-15 – 40°C) |
|
Storage Relative Humidity |
0 – 95 % non-condensing |
|
Storage Altitude |
0 – 5000 ft (0 – 1524 m) |
|
Acoustic Level |
45 dBA |
Â
Batteries & Runtime
|
Included Battery Modules |
1 |
|
Empty Battery Slots |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
24 V |
|
Battery Capacity |
9.4 Ah |
|
Battery Charge Power |
16 W rated |
|
Battery Power in VAh |
257 VAh |
|
Battery Life |
3 – 5 years |
|
Replacement Battery |
APCRBC163 |
|
Extendable Run Time |
0 |
Â
Communications & Management
|
Control Panel |
Multi-function LCD status and control console |
|
Alarm |
On battery / Low battery / Overload |
Â
Surge Protection & Filtering
|
Surge Energy Rating |
1080 J |
|
Filtering |
Full time multi-pole noise filtering; 5% IEEE surge let-through; zero clamping response time |
|
Data Line Protection |
Coaxial cable for CATV/SATV/modem/audio-video |
