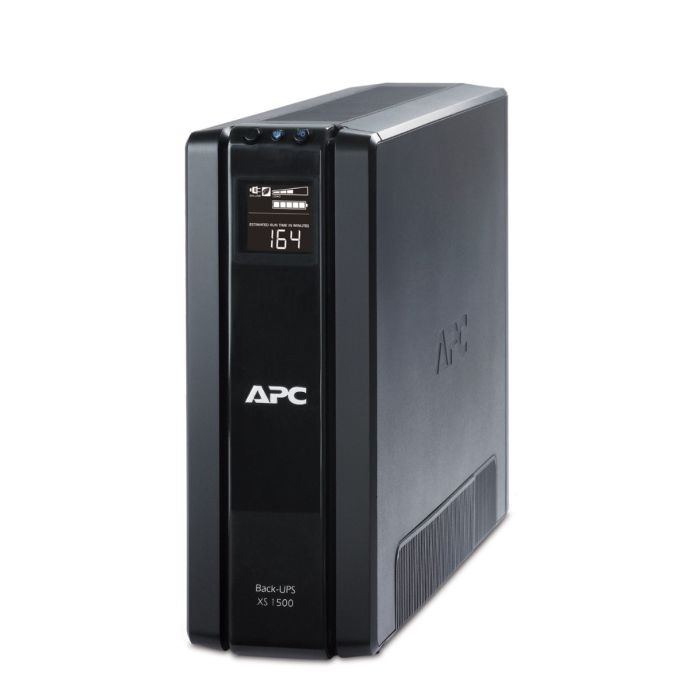

APC Power-Saving Back-UPS XS 1500VA 865W 120V Output: (10)5-15R, BX1500G-CA - Refurbished
APC Back-UPS XS 1500VA 865W
Model: BX1500G-CA
Input: NEMA 5-15P (120V - 15A)
Output: (5) NEMA 5-15R (Surge), (5) NEMA 5-15R (Battery & Surge)
Line Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
Â
CAD $229.99
Back Order
Manufacturer: APC
Model: APC Back-UPS XS 1500VA 865W 120V
Condition: New batteries, refurbished UPS
Part Number: BX1500G-CA
Maximum output: 865W / 1500VA
Typical backup time at half load: 13.0 minutes (432.5 Watts)
Typical backup time at full load: 3.0 minutes (865 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS XS 1500VA 865W BX1500G-CA - User Manual
BX1500G-CA - APC Back-UPS XS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
rated power in W |
865W |
||||
|
Rated Power in VA |
1500VA |
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of power module filled slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
11.9 in (30.1 cm) |
|
Width |
4.4 in (11.2 cm) |
|
Depth |
15.04 in (38.2 cm) |
|
Net Weight |
23.8 lb(US) (10.8 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
865W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum Configurable Power in VA |
1500VA |
|
Transfer Time |
8ms typical : 12ms maximum |
Conformance:
|
Product Certifications |
California Energy Commission (CEC) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C |
|
Relative Humidity |
0 - 95 % |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
45 dBA
|
|
Operating altitude |
0...30000 ft
|
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
2 |
|
Battery Charge Power (Watts) |
12 W rated |
|
Battery power in VAH |
187 VAh capacity |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC124 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
Surge Protection and Filtering:
|
Surge Energy Rating |
354 J
|
|
Noise suppression |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping
response time : meets UL 1449 |
|
Let Through Voltage Rating |
330 V
|
