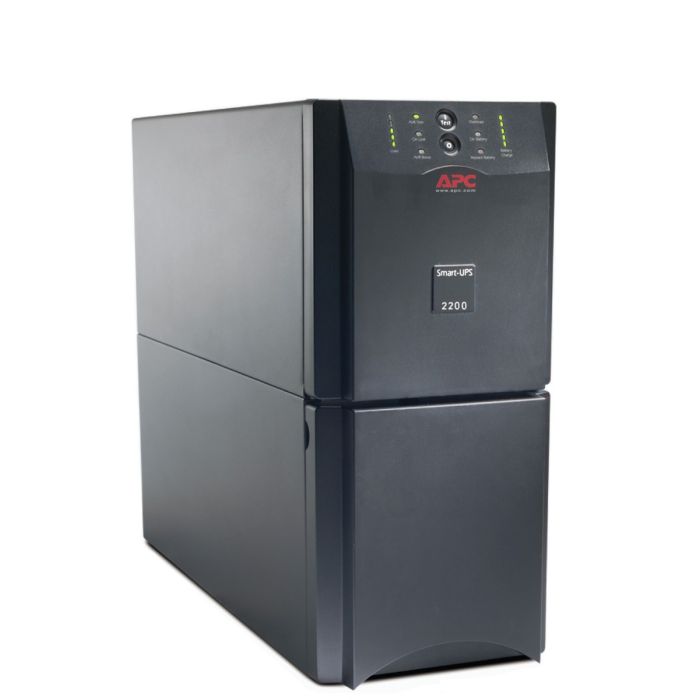

APC Dell Smart-UPS 2200VA 1980W USB & Serial 120V 20A DLA2200 - Refurbished
APC Dell Smart-UPS 2200VA 1980W USB & Serial
Model: DLA2200
Input: NEMA 5-20P (120V - 20A)
Output: (2) NEMA 5-20R (Battery Backup), (8) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $689.99
In stock
Manufacturer: APC
Model: APC Dell Smart-UPS 2200VA 1980W USB & Serial 120V
Condition: New batteries, refurbished UPS
Part Number: DLA2200
Maximum output: 1980W / 2200VA
Typical backup time at half load: 24.1 minutes (990 Watts)
Typical backup time at full load: 6.7 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Dell Smart-UPS 2200VA 1980W 120V DLA2200 Manual
DLA2200 - APC Dell Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
1980W |
||||
|
Rated Power in VA |
2200VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
7.72 in (19.6 cm) |
|
Depth |
21.50 in (54.6 cm) |
|
Net Weight |
112.24 lb(US) (50.91 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
No |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1980W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Efficiency at full load |
95 % full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
275 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3- 5 years |
|
Replacement Battery |
RBC55 |
|
Battery Power in VAH |
816 VAh runtime |
|
Battery Charge Power (Watts) |
271 W rated |
Communications & Management:
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
459 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
