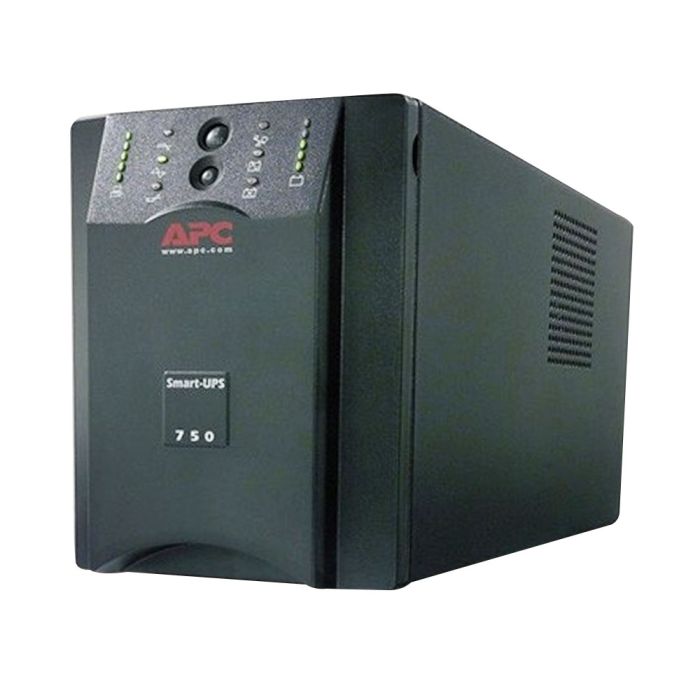

APC Dell Smart-UPS 750VA 500W 120V DLA750 - Refurbished
APC Dell Smart-UPS 750VA 500W
Model: DLA750
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line Interactive UPS
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $137.99
Back Order
Manufacturer: APC
Model: APC Dell Smart-UPS 750VA 500W, 120V
Condition: New batteries, refurbished UPS
Part Number: DLA750
Maximum output: 500W / 750VA
Typical backup time at half load: 13 minutes (250 Watts)
Typical backup time at full load: 5 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Dell Smart-UPS 750VA 500W DLA750 Manual
DLA750 - APC Dell Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
500W |
||
|
Rated power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC48 |
|
Battery power in VAH |
146 VAh runtime |
|
Battery Charge Power (Watts) |
49 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
6.18 inches (157mm, 15.7cm) |
|
Width |
5.39 inches (137mm, 13.7cm) |
|
Depth |
14.09 inches (358mm, 35.8cm) |
|
Net Weight |
29.06 lbs. (13.18kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Maximum configurable power in VA |
750VA |
|
Max Configurable Power (Watts) |
500W |
|
Topology |
Line Interactive |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
90 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO |
Optional |
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
