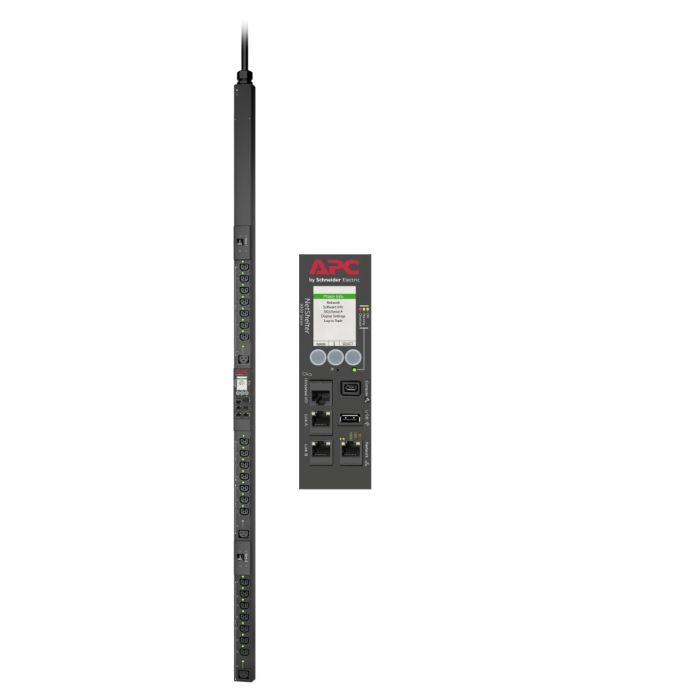

APC APDU9941 Rack PDU Switched 0U 5000W 208V 30A, Out:(21)C13/C15 & (3)C19/C21 Refurbished
APDU9941 Rack PDU, Switched, Zero U, 5.0kW, 200/208V, 30A, 208V Single-Phase
Model: APDU9941
Input: 200–208V Single-Phase
Input Connection: NEMA L6-30P – 30A 208V
Output Voltage: 200V / 208V
Output Connections: (21) IEC C13/C15 Hybrid, (3) IEC C19/C21 Hybrid
Refurbished PDU
1 Year Full Replacement Warranty4
CAD $1,149.99
In stock
Manufacturer: APC
Model: APDU9941
Description: APC NetShelter Switched Rack PDU, 0U, 5.0kW, 200V/208V, (21) C13/C15 Hybrid & (3) C19/C21 Hybrid
Input: NEMA L6-30P – 30A 200V/208V
Output: (21) IEC C13/C15, (3) IEC C19/C21
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: APC APDU9941 Switched Rack PDU, 0U, 5.0kW, 30A, 200V/208V. Designed for advanced power distribution and remote outlet management in high-density rack environments. Features individual outlet switching and reboot control, real-time load monitoring, and secure remote management through Web UI, SNMP, Redfish, SSH, and CLI interfaces. Equipped with (21) IEC C13/C15 Hybrid and (3) IEC C19/C21 Hybrid outlets, supporting modern high-temperature IT equipment and locking power cord compatibility. Vertical 0U form factor saves valuable rack space while providing reliable power distribution for servers, storage, and network devices. Refurbished PDU with 1 Year Full Replacement Warranty Included.
APC APDU9941 NetShelter Switched Rack PDU, 0U, 5.0kW - User's Manual
APDU9941- APC NetShelter Switched Rack PDU specifications:
Key Features:
| Rack Height |
Toolless 0U Vertical Mounting |
| PDU Type |
Switched |
| Load Capacity |
4992VA / 5.0kW |
| Nominal Input Voltage |
200V / 208V |
| Nominal Output Voltage |
200V / 208V |
| Input Connection |
NEMA L6-30P |
| Cord Length |
9.8 ft (3 m) |
| Output Connections |
(21) IEC C13/C15 Hybrid |
|
(3) IEC C19/C21 Hybrid |
|
| Remote Outlet Control |
Yes |
| Remote Monitoring |
Yes |
| Network Connectivity |
10/100/1000 Base-T Ethernet |
| Supported Protocols |
SNMP, Redfish |
| Mounting Style |
Vertical Rackmount |
| Color |
Black |
|
|
|
Intput:
| Input Voltage | 200V / 208V |
| Input Frequency | 50/60 Hz |
| Input Plug Type | NEMA L6-30P |
| Number of Power Cords | 1 |
| Maximum Input Current | 30A |
| Regulatory Derated Current | 24A |
| Load Capacity | 4992VA |
Output:
| Output Voltage | 200V / 208V |
| Output Connections | (21) IEC C13/C15 Hybrid |
| (3) IEC C19/C21 Hybrid | |
| Maximum Total Current Draw | 30A |
| Line Rated Current | 24A |
| Outlet Switching | Individual Remote Outlet Control |
| Outlet Reboot Capability | Supported |
Communications and Management:
| Network Interface |
Built-in 10/100/1000 Ethernet |
| Remote Management |
Web UI, SNMP, Redfish, SSH, CLI |
| Outlet Control |
Individual outlet switching and reboot |
| Monitoring |
Real-time power and load monitoring |
| User Access |
Secure remote administrator access |
| Network Protocols |
SNMP, Redfish |
| Firmware Updates |
Supported via network interface |
| Security Features |
Password-protected remote access |
| Event Logging |
Supported |
| Local Configuration |
Supported |
Environmental:
| Operating Temperature |
23°F to 140°F (-5°C to 60°C) |
| Operating Humidity |
5–95% RH |
| Operating Elevation |
0–10,000 ft |
| Storage Temperature |
-13°F to 149°F (-25°C to 65°C) |
| Storage Humidity |
5–95% RH |
| Storage Elevation |
0–50,000 ft (0–15,240 m) |
Physical:
| Height |
72.01 in (1829 mm) |
| Width |
2.2 in (55 mm) |
| Depth |
1.8 in (46 mm) |
| Net Weight |
18.7 lbs (8.5 kg) |
| Mounting Position |
Vertical |
| Mounting Location |
Side |
| Rack Units |
0U |
| Color |
Black |
Certifications & Compliance::
| Certifications |
cUL Listed, PSE |
| Compliance Standards |
FCC Part 15 Class A, ICES-003 |
| Warranty |
1 Year Full Replacement Warranty |
