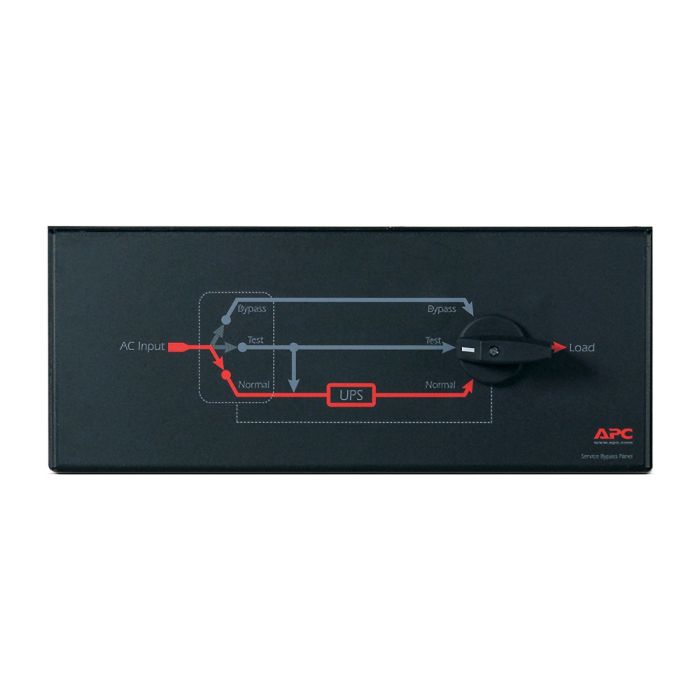

Main image Click to view image in fullscreen APC Service Bypass Panel 20kVA 208V/240V 100A Output: (1)L14-30R (3)L5-20R, SBP16KRMP4U-HW - Refurbished

APC Service Bypass Panel 20kVA 208V/240V 100A Output: (1)L14-30R (3)L5-20R, SBP16KRMP4U-HW - Refurbished

APC 100A Service Bypass Panel 200V/208V/240V, 20000 VA, 100A
Model: SBP16KRMP4U-HW
Hardwire input
Output: (1)L14-30R, (3)L5-20R
1 Year Warranty

Extended Warranty

1 Year Included

2 Year + CAD $230.00

3 Year + CAD $402.50

In stock

Quantity

Manufacturer: APC
Model Description: APC 100A Service Bypass Panel 200V-208V-240V
Condition: Refurbished
Part Number: SBP16KRMP4U-HW
Warranty: 1 Year Full Replacement Warranty

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input, output: (1)L14-30R, (3)L5-20R.

APC Service Bypass Panel 208V-240V SBP16KRMP4U-HW User's Manual

Main:

Main Input Voltage	208V
Main Output Voltage	120 V 200V 208V
Other Output Voltage	240V
Number of Rack Unit	4U

Physical:

Colour	Black
Height	7.008 in (178 mm)
Width	17.008 in (432 mm)
Depth	26.50 in (67.3 cm)
Net Weight	51.10 lb(US) (23.18 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted

Input:

Network Frequency	50/60 Hz
Number of Input Connectors	1 hard wire 3-wire (2P + E) 1 hard wire 4-wire (2P + N + E)
Max Line Current	100 A
Input Current Limits	100 A
Load Capacity	20000VA
Power Factor	0…1

Output:

Max Current Draw

100 A

Number of Power Socket Outlets

(1) NEMA L14-30R

(3) NEMA L5-20R

Protection Type

Circuit Breaker

Efficiency

99%

Conformance:

Product Certifications

CSA
GOST

Environmental:

Ambient Air Temperature for Operation	-4…122 °F (-20…50 °C)
Relative Humidity	0…95%
Operating Altitude	0...15000 ft
Ambient Air Temperature For Storage	-40…149 °F (-40…65 °C)
Storage Relative Humidity	0…95%
Storage Altitude	0…50000 ft (0.00…15240.00 m)
