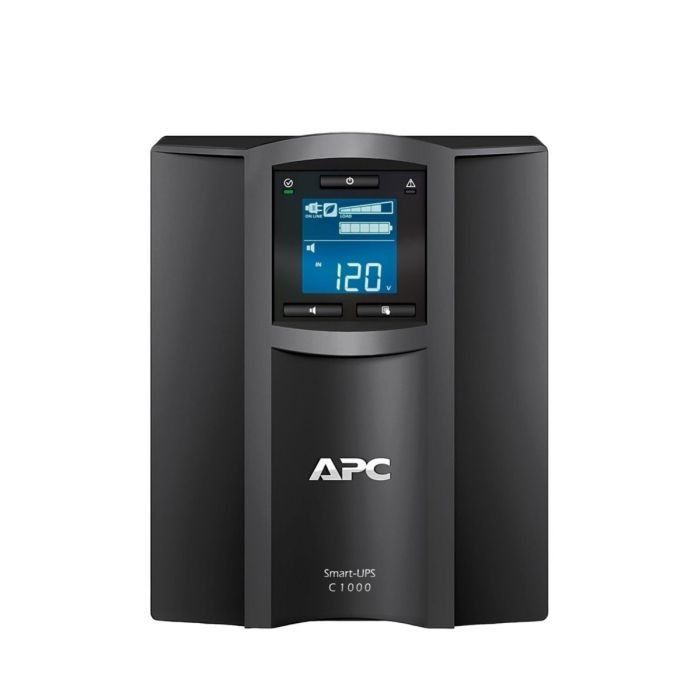

APC SmartConnect 1000VA 600W LCD Tower 120V 15A SMC1000C Smart-UPS - Refurbished
APC Smart-UPS 1000VA 600W SmartConnect Tower
Model: SMC1000C
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $389.99
Back Order
Manufacturer: APC
Model:Â APC Smart-UPS 1000VA 600W LCD Tower 120V, SmartConnect, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SMC1000C
Maximum output: 600WÂ /Â 1000VA
Typical backup time at half load: 22.3 minutes (300 Watts)
Typical backup time at full load: 9.9 minutes (600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 600W LCD Tower SMC1000C - User Manual
SMC1000C - APC Smart-UPS 1000VA 600W LCD Tower Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Kw Rating |
600W |
||
|
Rated power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Product web sub-family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.62 in (21.9 cm) |
|
Width |
6.73 in (17.1 cm) |
|
Depth |
17.28 in (43.9 cm) |
|
Net Weight |
37.48 lb(US) (17 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
Input:
|
Efficiency at full load |
85-136V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum configurable power in VA |
1000VA |
|
Max Configurable Power (Watts) |
600W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
|
Acoustic level |
41dBA |
|
Heat dissipation |
175 Btu/h |
|
Operating altitude |
0-10000ft |
|
Ambient Air Temperature for Operation |
32-104°F (0-40°C) |
|
Ambient Air Temperature for Storage |
5-113°F (-15-45 °C) |
|
Storage altitude |
0-50000ft (0.00-15240.00m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Batteries & Runtime:
|
Extendable Run Time |
0
|
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 year(s) |
|
Replacement Battery |
APCRBC142 |
|
Battery power in VAH |
216VAh runtime |
|
Battery Charge Power (Watts) |
72W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Free Slots |
0 |
|
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m |
