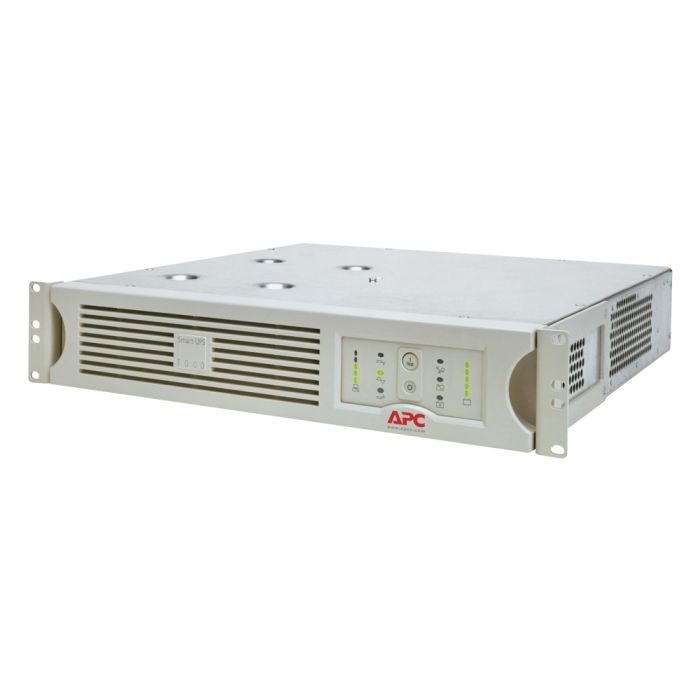

APC Smart-UPS 1000VA 670W RM 2U 120V SU1000RM2U - Refurbished
APC Smart-UPS 1000VA 670W RM 2U SU1000RM2U
Model: SU1000RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $344.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 1000VA 670W, Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: SU1000RM2U
Maximum output: 670W / 1000VA
Typical backup time at half load: 29.9 minutes (335 Watts)
Typical backup time at full load: 8.8 minutes (670 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 670W SU1000RM2U Manual
SU1000RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
670W |
||
|
Rated Power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
4 - 6 year(s) |
|
Replacement Battery |
RBC23 |
|
Battery Power in VAH |
336 VAh runtime |
|
Battery Charge Power (Watts) |
112 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
19.0 inches (483mm, 48.3cm) |
|
Depth |
18.0 inches (457mm, 45.7cm) |
|
Net Weight |
62.0 lbs. (28.18kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1000VA |
|
Max Configurable Power (Watts) |
670W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
89 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free slots |
1 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
459 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
