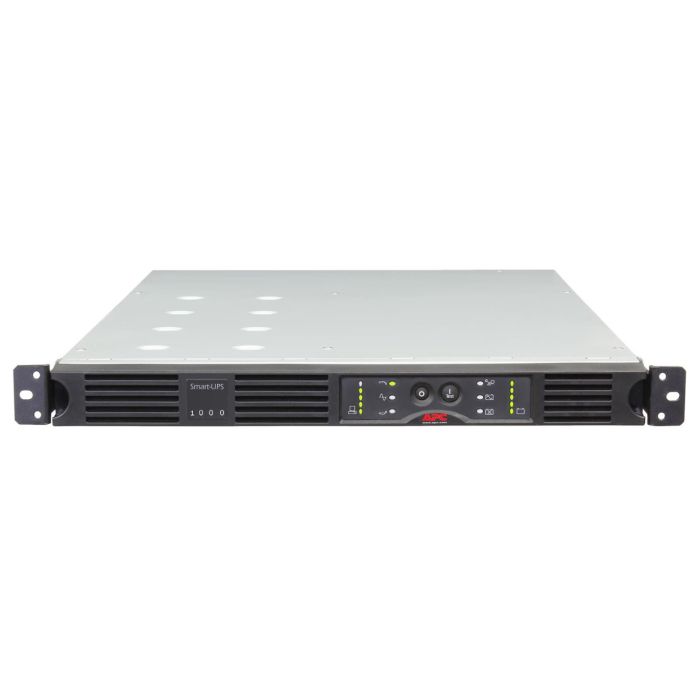

APC Smart-UPS 1000VA 670W USB & Serial RM 1U 120V Output:(4)5-15R SUA1000RM1U - Refurbished
APC Smart-UPS 1000VA 670W RM 1U 120V
Model: SUA1000RM1U
Input: 5-15P (120V - 15A)
Output: (4) 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $429.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 1000VA 670W USB & Serial RM, 1U, 120V
Condition: New batteries, refurbished UPS
Part Number: SUA1000RM1U
Maximum output: 670W / 1000VA
Typical backup time at half load: 13.4 minutes (335 Watts)
Typical backup time at full load: 5.5 minutes (670 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 670W RM 1U SUA1000RM1U Manual
SUA1000RM1U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
670W |
||
|
Rated Power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
1U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2 h |
|
RBC Quantity |
1 |
|
Battery Life |
4-6 year(s) |
|
Replacement Battery |
RBC34 |
|
Battery power in VAH |
864VAh runtime |
|
Battery Charge Power (Watts) |
107 W rated |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
1.72 inches (44mm, 4.4cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
26.0 inches (660mm, 66.0cm) |
|
Net Weight |
48.0 lbs. (21.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1000VA |
|
Max Configurable Power (Watts) |
670W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
130 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
880 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
