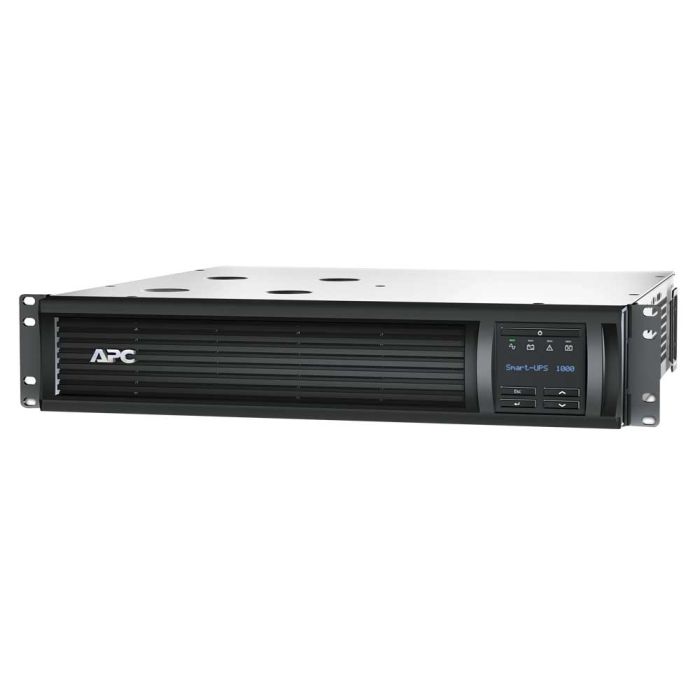

APC Smart-UPS 1000VA 700W LCD 120V RM 2U Output: (6)5-15R, SMT1000RM2U - Refurbished
APC Smart-UPS 1000VA 700W LCD RM 2U
Model: SMT1000RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $409.99
In stock
Manufacturer: APC
Model:Â APC Smart UPS 1000VA 700W LCD, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMT1000RM2U
Maximum output: 700WÂ /Â 1000VA
Typical backup time at half load:Â 31.3 minutes (350 Watts)
Typical backup time at full load: 8.7 minutes (700 Watts)
Warranty: 1 year full replacement warranty
APC Smart UPS 1000VA 700W LCD SMT1000RM2U - User Manual
SMT1000RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
700W |
||
|
Rated power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of rack unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0
|
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
4Â - 6 year(s) |
|
Replacement Battery |
APCRBC157 |
|
Battery Power in VAH |
336 VAh runtime |
|
Battery Charge Power (Watts) |
112 W rated |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
18.0 inches (457mm, 45.7cm) |
|
Net Weight |
62.0 lbs. (28.18kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic distortion |
Less than 5% |
|
Maximum configurable power in VA |
1440VA |
|
Max Configurable Power (Watts) |
700W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic level |
45 dBA |
|
Online Thermal Dissipation |
56 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000ft (0.00Â - 15240.00m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
459 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
