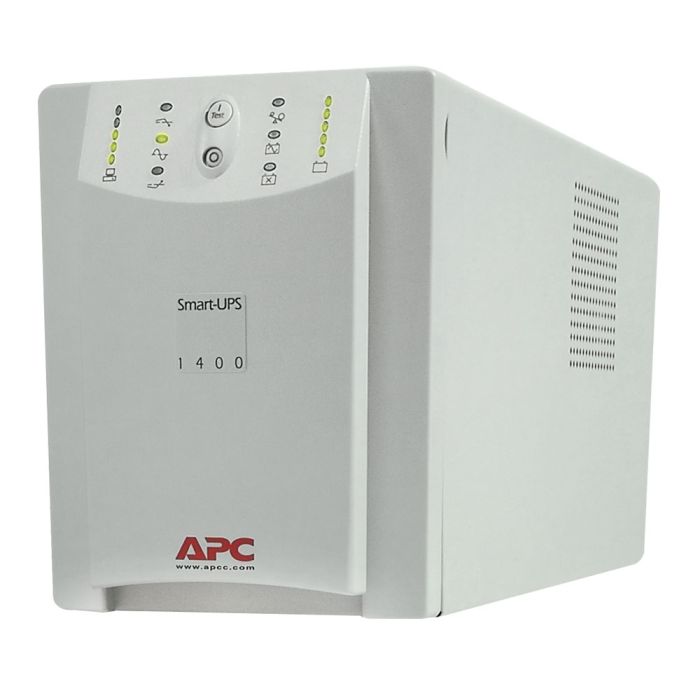

APC Smart-UPS 1400VA 950W 120V SU1400NET - Refurbished
APC Smart-UPS 1400VA 950W
Model: SU1400NET
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $344.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 1400VA 950W, 120V
Condition: New batteries, refurbished UPS
Part Number: SU1400NET
Maximum output: 950W / 1400VA
Typical backup time at half load: 25.2 minutes (475 Watts)
Typical backup time at full load: 7 minutes (950 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1400VA 950W SU1400NET Manual
SU1400NET - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
950W |
||
|
Rated Power in VA |
1400VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
0U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC7 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
136 W rated |
|
Battery Power in VAH |
408 VAh runtime |
|
Extendable Run Time |
0 |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.5 inches (216mm, 21.59cm) |
|
Width |
6.7 inches (170mm, 17.02cm) |
|
Depth |
17.3 inches (439mm, 43.94cm) |
|
Net Weight |
53.11 lbs. (24.09kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Efficiency at full load |
86 - 154V adjustable |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum configurable power in VA |
1400VA |
|
Max Configurable Power (Watts) |
950W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
135 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 %
|
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
320 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
