Description
Details
Manufacturer: APC

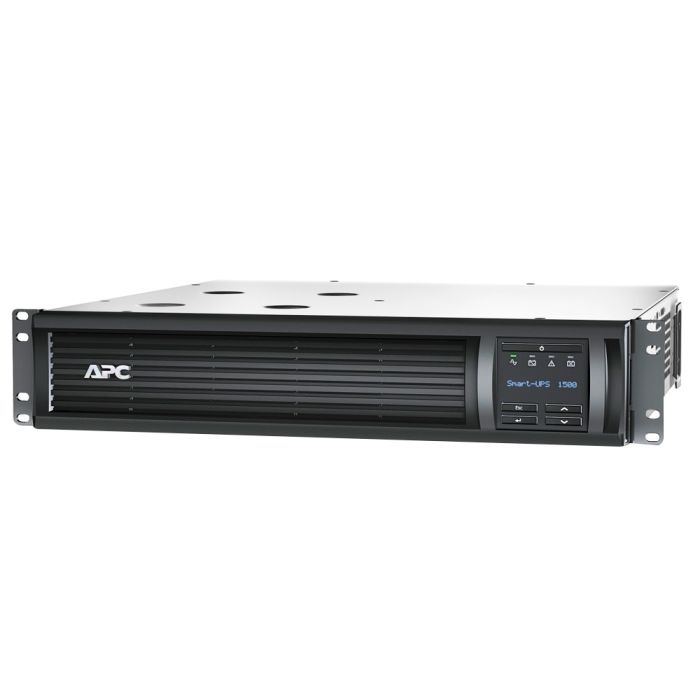

Model: APC Smart-UPS 1500VA 1000W LCD, RM, 2U, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: SMT1500RM2UC
Maximum output: 1000W / 1500VA
Typical backup time at half load: 25.9 minutes (500 Watts)
Typical backup time at full load: 7.2 minutes (1000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1500VA 1000W Tower SMT1500RM2UC Manual
SMT1500RM2UC - APC Smart-UPS Specifications:
Main:
Main Input Voltage |
120V |
||
Other Input Voltage |
110V |
||
Main Output Voltage |
120V |
||
Other Output Voltage |
110V |
||
Rated Power in W |
1000W |
||
Rated power in VA |
1440VA |
||
Input Connection Type |
|
||
Output Connection Type |
|
||
Number of Rack Unit |
2U |
||
Cable Length |
8 ft (2.44 m) |
||
Number of Cables |
1 |
||
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
Extendable Run Time |
0
|
Included Battery Modules |
0 |
Battery Slots Empty |
0 |
Typical Recharge Time |
3 h |
RBC Quantity |
1 |
Battery Life |
4 - 6 year(s) |
Replacement Battery |
APCRBC159 |
Battery Power in VAH |
432 VAh runtime |
Battery Charge Power (Watts) |
144 W rated |
General:
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Product Web Sub-Family |
Cloud-enabled monitoring |
Redundant |
No |
Physical:
Colour |
Black |
Height |
3.39 inches (86mm, 8.6cm) |
Width |
17.0 inches (432mm, 43.2cm) |
Depth |
18.78 inches (477mm, 47.7cm) |
Net Weight |
58.42 lbs. (26.5kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
Yes |
Input:
Efficiency at Full load |
75 - 154V adjustable |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Harmonic Distortion |
Less than 5% |
Maximum Configurable Power in VA |
1440VA |
Max Configurable Power (Watts) |
1000W |
Transfer Time |
6ms typical : 10ms maximum |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
Product Certifications |
CULus |
Environmental:
Acoustic Level |
45 dBA |
Online Thermal Dissipation |
225 Btu/h |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
Storage Altitude |
0 - 50000ft (0.00 - 15240.00m) |
Relative Humidity |
0 - 95% |
Storage Relative Humidity |
0 - 95% |
Communications & Management:
Control Panel |
Multi-function LCD status and control console |
Free Slots |
1 |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
Surge Energy Rating |
680 J
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 1000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
