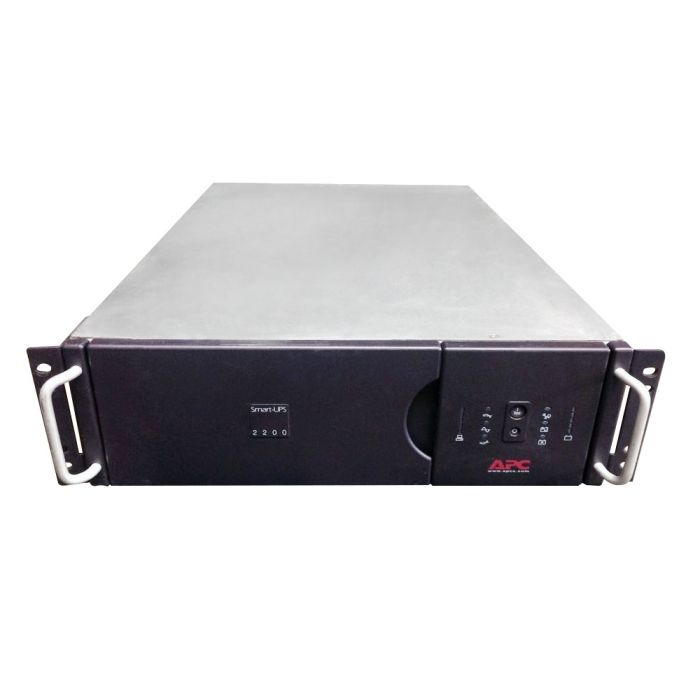

APC Smart-UPS 2200VA 1600W RM 3U 120V DL2200RM3U - Refurbished
APC Smart-UPS 2200VA 1600W RM 3U
Model: DL2200RM3U
Input: NEMA L5-20P (120V - 20A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $540.49
Back Order
Manufacturer: APC
Model: APC Smart-UPS 2200VA RM 3U, 120V 20A
Condition: New batteries, refurbished UPS
Part Number: DL2200RM3U
Maximum output: 1600W / 2200VA
Typical backup time at half load: 24.5 minutes (800 Watts)
Typical backup time at full load: 6.8 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1600W RM 3U DL2200RM3U Manual
DL2200RM3U - APC Smart-UPS 2200VA Specifications:
Output:
|
Output power capacity |
1.6kW / 2.2kVA |
||
|
Max Configurable Power (Watts) |
1.6kW / 2.2kVA |
||
|
Nominal Output Voltage |
120V |
||
|
Output Voltage Distortion |
Less than 5% at full load |
||
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
||
|
Load Crest Factor |
up to 5 : 1 |
||
|
Topology |
Line Interactive |
||
|
Waveform type |
Sine wave |
||
|
Output Connections |
|
||
|
Transfer Time |
2ms typical |
Input:
|
Nominal Input Voltage |
120V |
||
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
||
|
Input Connections |
|
||
|
Cord Length |
8ft (2.44meters) |
||
|
Input voltage range for main operations |
92 - 147V |
||
|
Input voltage adjustable range for mains operation |
86 - 154V |
||
|
Number of Power Cords |
1 |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
3hour(s) |
|
Replacement Battery |
CURK12X |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Battery Volt-Amp-Hour Capacity |
672 |
Communications and Management:
|
Interface Port(s) |
DB-9 RS-232, SmartSlot |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
|
Available SmartSlot™ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge energy rating |
880 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
5.2 inches (132mm, 13.21cm)
|
|
Maximum Width |
19.0 inches (483mm, 48.26cm) |
|
Maximum Depth |
25.0 inches (635mm, 63.5cm) |
|
Rack Height |
3U |
|
Net Weight |
103.0 lbs. (46.82kg) |
|
Shipping Weight |
123.0 lbs. (55.91kg) |
|
Shipping Height |
10.0 inches (254mm, 25.4cm) |
|
Shipping Width |
24.5 inches (622mm, 62.23cm) |
|
Shipping Depth |
37.5 inches (953mm, 95.25cm) |
|
Color |
Black |
