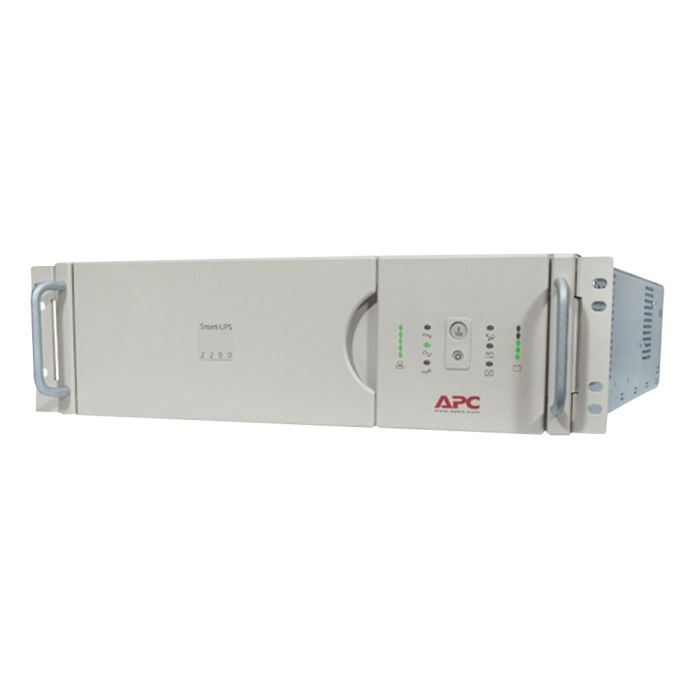

APC Smart-UPS 2200VA 1600W RM 3U 120V SU2200RM3U - Refurbished
APC Smart-UPS 2200VA 1600W RM 3U
Model: SU2200RM3U
Input: NEMA 5-20P (120V - 20A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 2200VA 1600W, RM 3U, 120V
Condition: New batteries, refurbished UPS
Part Number: SU2200RM3U
Maximum output: 1600W / 2200VA
Typical backup time at half load: 20.6 minutes (800 Watts)
Typical backup time at full load: 6.1 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1600W RM 3U SU2200RM3U Manual
SU2200RM3U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
1600W |
||
|
Rated power in VA |
2200VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
3U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC12 |
|
Battery power in VAH |
672 VAh runtime |
|
Battery Charge Power (Watts) |
223 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
5.2 inches (132mm, 13.21cm |
|
Width |
19.0 inches (483mm, 48.26cm) |
|
Depth |
25.0 inches (635mm, 63.5cm |
|
Net Weight |
103.22 lbs. (46.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
86-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1600W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
47 dBA |
|
Heat Dissipation |
275 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
880 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
