APC

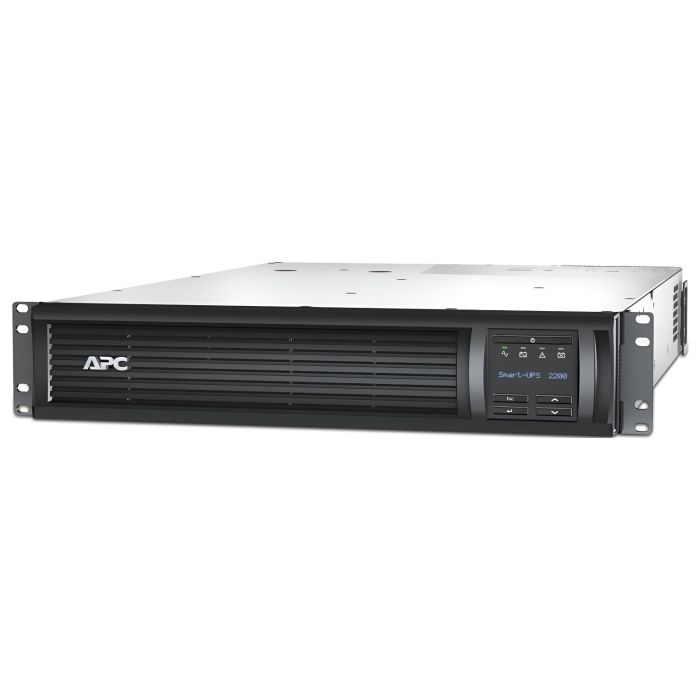

APC Smart-UPS 2200VA 1920W LCD RM 2U 120V SmartConnect SMT2200RM2UC - Refurbished
APC Smart-UPS 2200VA 1920W LCD RM 2U 120V - SmartConnect
Model: SMT2200RM2UC
Input: NEMA 5-20P - 20A, 120V
Output: (6) 5-15R, (2) 5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $919.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 2200VA 1920W, LCD, RM, 2U, 20A, 120V, SmartConnect model
Condition: New batteries, refurbished UPS
Part Number: SMT2200RM2UC
Maximum output: 1920W / 2200VA
Typical backup time at half load: 18 minutes (960 Watts)
Typical backup time at full load: 6 minutes (1920 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1920W Smartconnect LCD RM 2U SMT2200RM2UC Manual
SMT2200RM2UC - APC Smart-UPS 2200VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Other Input Voltage |
110V |
||||
|
Main Output Voltage |
120V |
||||
|
Other Output Voltage |
110V |
||||
|
Rated Power in W |
1920W |
||||
|
Rated Power in VA |
22000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Physical:
|
Color |
Black |
|
Height |
3.39 in (8.6 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
26.89 in (68.3 cm) |
|
Net Weight |
93.28 lb(US) (42.31 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75 - 154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1980W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CULus |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
215 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Typical Recharge Time |
3-8h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
538 VAh capacity |
|
Battery Charge Power (Watts) |
179 W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
530 J
|
