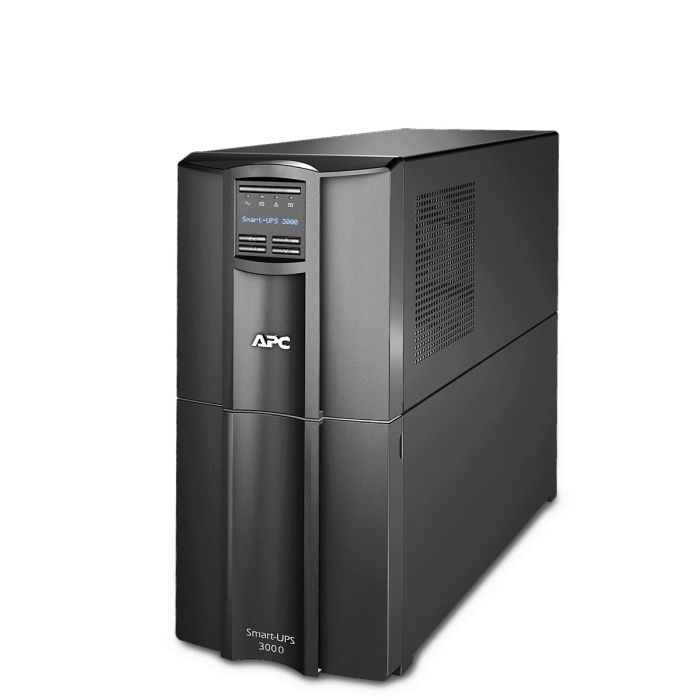

Main image Click to view image in fullscreen APC SmartConnect UPS 3000VA 2700W 120V 30A LCD Tower SMT3000C - Refurbished

APC SmartConnect UPS 3000VA 2700W 120V 30A LCD Tower SMT3000C - Refurbished

APC Smart-UPS 3000VA 2700W LCD Tower SmartConnect
Model: SMT3000C
Input: NEMA L5-30P (120V - 30A)
Output: (2) NEMA 5-20R, (8) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

In stock

Quantity

Manufacturer: APC
Model:APC Smart-UPS 3000VA 2700W LCD 120V 30A
Condition: Refurbished UPS, New batteries
Part Number: SMT3000C
Maximum output: 2700 Watts / 3000 VA
Battery Protected Outlets: 10
Typical backup timeat half load:13.6minutes (1350 Watts)
Typical backup time at full load:5.5 minutes (2700 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery

APC Smart-UPS 3000VA 2700W LCD Tower SMT3000C SmartConnect - User Manual

Specifications for the APC Smart UPS 3000VA:

Output:

Output power capacity

2700 Watts / 3000 VA

Max Configurable Power

2700 Watts / 3000 VA

Nominal output voltage

120V

Output Voltage Distortion

less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type

Sine wave

Output Connections

(8) NEMA 5-15R
(2) NEMA 5-20R

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connection Type

NEMA L5-30P

Cord Length

6 feet

Input voltage range for main operations

82 - 144 V

Input voltage adjustable range for mains operation

75 - 154 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC55
RBC Quantity	1
Typical backup time at half load	13.6 minutes (1350 Watts)
Typical backup time at full load	5.5 minutes (2700 Watts)

Communications and Management:

Interface port	DB-9 RS-232 , SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control panel	Multi-function LCD status and control console
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	530 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	17.00 inches (432 mm)
Maximum width	7.70 inches (196 mm)
Maximum depth	21.50 inches (546 mm)
Net weight	116.00 lbs. (52.73 kg)
Shipping Weight	134.00 lbs. (60.91 kg)
