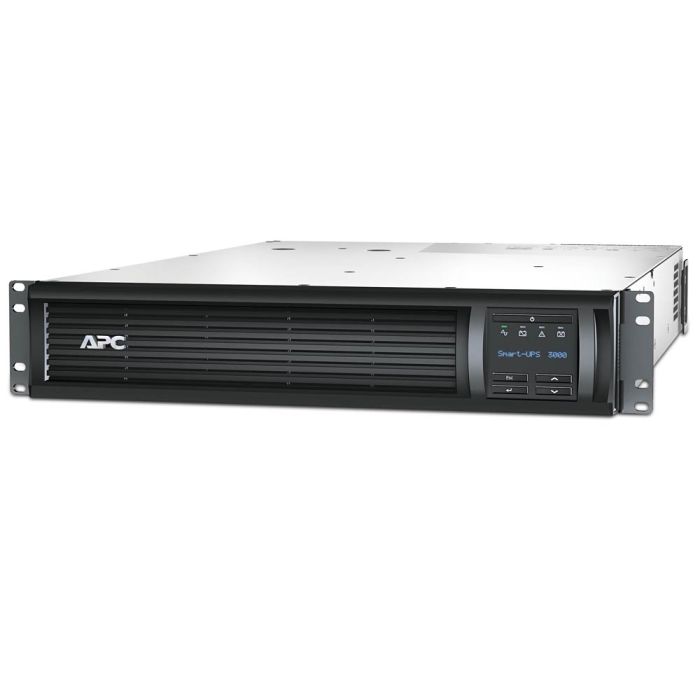

APC Smart-UPS 3000VA 2700W LCD RM 2U 120V 30A SMT3000RM2U - Refurbished
APC Smart-UPS 3000VA 2700W LCD RM 2U 120V 30A
Model: SMT3000RM2U
Input: NEMA L5-30PÂ
Output: (6) 5-15R, (2) 5-20R
Line Interactive UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,034.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2700W, LCD, RM, 2U 30A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT3000RM2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 11.4 minutes (1350 Watts)
Typical backup time at full load: 3.2 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2700W RM 2U SMT3000RM2U - User Manual
SMT3000RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
2700W |
||||
|
Rated Power in VA |
2880VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.39 in (8.6 cm) |
|
Width |
18.90 in (48 cm) |
|
Depth |
26.89 in (68.3 cm) |
|
Net Weight |
97.62 lb(US) (44.28 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
2880VA |
|
Max Configurable Power (Watts) |
2700W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
348 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
566 VAh runtime |
|
Battery Charge Power (Watts) |
188 W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Free Slots |
1 |
|
Control panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone |
Surge Protection and Filtering:
|
Surge Energy Rating |
459 J
|
