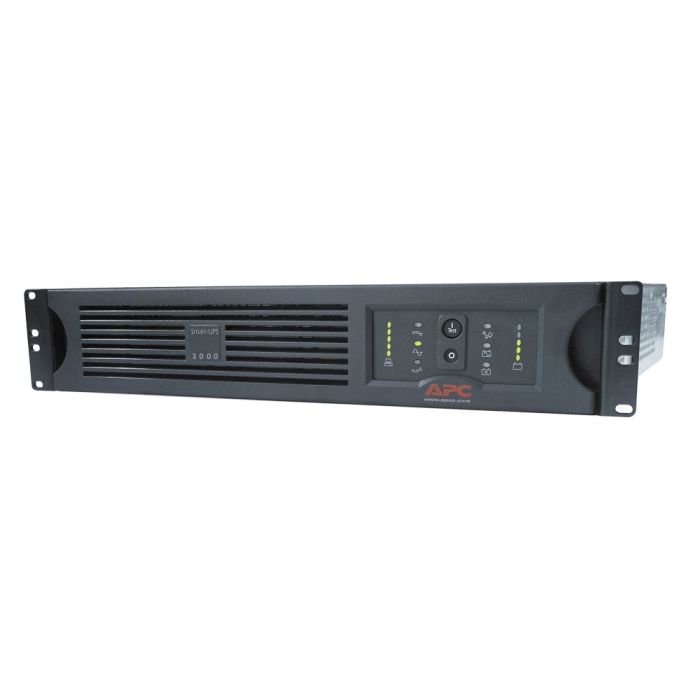

APC Smart-UPS 3000VA 2700W RM 2U 120V SUA3000R2X180 - Refurbished
APC Smart-UPS 3000VA 2700W USB RM 2U with AP9617 installed
Model: SUA3000R2X180
Input: NEMA L5-30P (120V - 30A)
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $804.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2700W, RM 2U, 120V - AP9617
Condition: New batteries, refurbished UPS
Part Number: SUA3000R2X180
Maximum output: 2700W / 3000VA
Typical backup time at half load: 11.3 minutes (1350 Watts)
Typical backup time at full load: 3.0 minutes (2700 Watts)
Warranty: 1 year full replacement warranty)
APC Smart-UPS 3000VA 2700W RM SUA3000R2X180 Manual
SUA3000R2X180 - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
2700W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
528 VAh runtime |
|
Battery Charge Power (Watts) |
175 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
|
Variant Option |
Installed Accessory |
Physical:
|
Color |
Black |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
19.0 inches (483mm, 48.3cm) |
|
Depth |
26.0 inches (660mm, 66.0cm) |
|
Net Weight |
96.0 lbs. (43.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75-154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Environmental:
|
Acoustic Level |
47 dBA |
|
Heat Dissipation |
400 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Yes
|
|
Free Slots |
0 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
