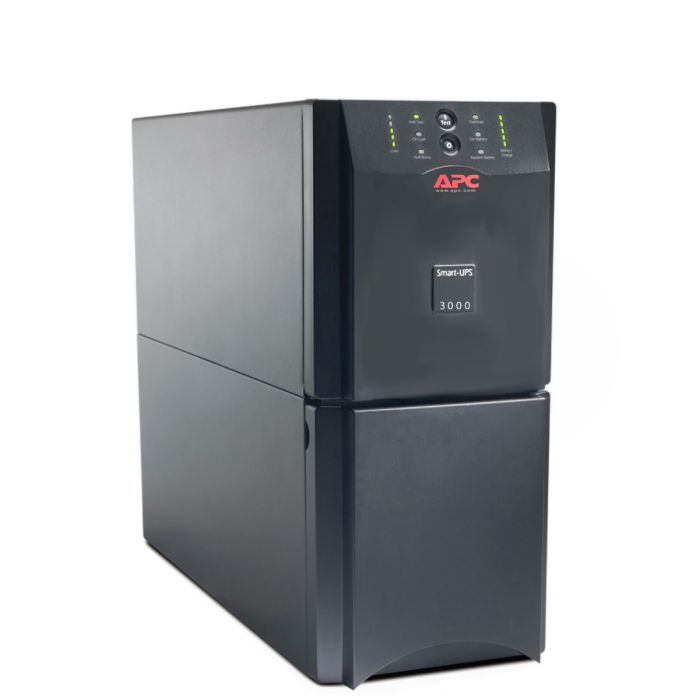

APC Smart-UPS SUA3000 3000VA 2700W Tower 120V 30A Output:(8)5-15R, (2)5-20R - Refurbished
APC Smart-UPS 3000VA 2700WÂ USB & Serial Tower
Model: SUA3000
Input: NEMA L5-30P (120V - 30A)
Output: (8) 5-15R, (2) 5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $804.99
Back Order
Manufacturer: APC
Model:Â APC Smart-UPS 3000VA 2700WÂ USB & Serial Tower 120V
Condition: New batteries, refurbished UPS
Part Number: SUA3000
Maximum output: 2700WÂ /Â 3000VA
Typical backup time at half load: 13.6 minutes (1350 Watts)
Typical backup time at full load: 5.5 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2700WÂ USB & Serial Tower SUA3000 Manual
SUA3000 - APC Smart-UPS 3000VA Specifications:
Main:
|
Main Input Voltage |
110V |
||||
|
Main Output Voltage |
110V |
||||
|
Rated power in W |
2700W |
||||
|
Rated power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
0U |
||||
|
Cable Length |
1.83 m |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of power module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
43.2 cm |
|
Width |
19.6 cm |
|
Depth |
54.4 cm |
|
Net Weight |
52.73 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-Mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
75Â - 154V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at Full Load |
|
Maximum Configurable Power in VA |
3000VA |
|
Maximum Configurable Power in W |
2700W |
|
Transfer Time |
2 ms typical |
|
UPS Type |
Line interactive |
|
Wave Type |
Sine Wave |
|
Output Frequency |
47Â - 53 Hz for 50 Hz Nominal Sync to Mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
275 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
0 - 40°C |
|
Ambient Air Temperature for Storage |
-15 - 45°C |
|
Storage Altitude |
0.00Â - 15240.00m |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
RBC55 |
|
Battery Power in VAH |
816 VAh Runtime |
|
Battery Charger Power |
271 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line: on battery: replace battery: and overload indicators |
|
Emergency Power Off |
Yes |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
530 J |
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
