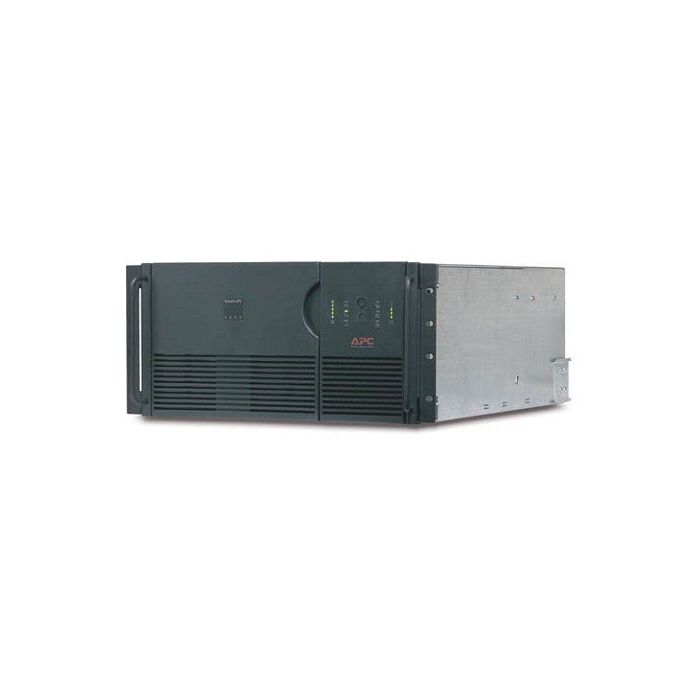

APC Smart-UPS 5000VA 3750W RM 5U 208V SU5000R5TBX135 - Refurbished
APC Smart-UPS 5000VA
3750 Watts / 5000 VA - SU5000R5TBX135
Output: (8) IEC 320 C13, (2) IEC 320 C19
Input: NEMA L6-30P - 208V 30A
Refurbished with New Batteries
1 Year Warranty Included
CAD $1,494.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 5000VA 3750W, RM 5U, 208V
Condition: New batteries, refurbished UPS
Part Number: SU5000R5TBX135
Maximum output: 3750W / 5000VA
Warranty: 1 year full replacement warranty)
APC Smart-UPS 5000VA 3750W RM 5U SU5000R5TBX135 Manual
SU5000R5TBX135 - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Main Output Voltage |
208V |
||||
|
Rated Power in W |
3750W |
||||
|
Rated Power in VA |
5000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
5U |
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
2 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC12 |
|
Battery Power in VAH |
1344 VAh runtime |
|
Battery Charge Power (Watts) |
447 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.75 in (22.23 cm) |
|
Width |
19.00 in (48.26 cm) |
|
Depth |
25.00 in (63.5 cm) |
|
Net Weight |
225.47 lb(US) (102.27 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at full load |
151-268V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
5000VA |
|
Max Configurable Power (Watts) |
3750W |
|
Waveform Type |
Sine wave |
|
Topology |
Line Interactive |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA |
|
Heat Dissipation |
430 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional
|
|
Free Slots |
0 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
